BL-BGX3V4V-1

LED Indication - Discrete Overview

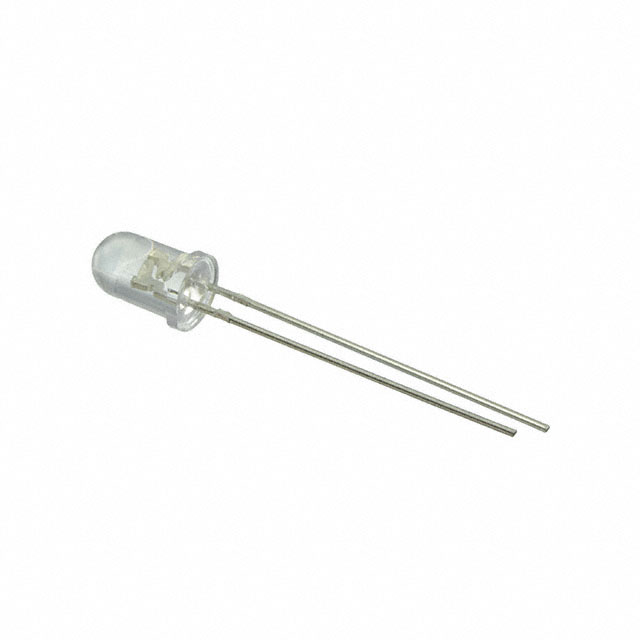

The BL-BGX3V4V-1 is a single-color green light-emitting diode manufactured by American Bright Optoelectronics Corporation. It features a T-1 3/4 (5mm) radial through-hole package with a water clear lens. The device emits light at a peak wavelength of 525 nm and operates with a forward voltage of 3 V. Key electrical parameters include a maximum forward current of 20 mA, a typical luminous intensity of 25,000 mcd, and a power rating of 110 mW. The component supports an operating temperature range from -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Produces high-intensity green illumination suitable for visual indication applications
• Utilizes a standard T-1 3/4 radial leaded package for easy PCB mounting
• Features a water clear lens design to maximize light transmission efficiency

LED Indication - Discrete Applications

• Panel indicator lights for electronic equipment
• Status indication in consumer appliances
• Visual signaling in industrial control systems

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number against official American Bright Optoelectronics Corporation documentation to ensure authenticity. Confirm that the specific order matches the T-1 3/4 radial package and green color specifications. Check for RoHS compliance status if required by project regulations. Ensure storage conditions adhere to moisture sensitivity levels defined in the datasheet prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a high-brightness green indicator is required in a standard 5mm through-hole footprint. Consider the 25,000 mcd intensity for visibility needs and the 3 V forward voltage for circuit compatibility. Evaluate the -40 °C to +85 °C operating range against environmental constraints. Compare against similar American Bright Optoelectronics green LEDs for package or wavelength variations.

LED Indication - Discrete Part Context

This discrete LED belongs to the American Bright Optoelectronics Corporation single-color LED portfolio. It complements other components like the BL-BGX3V1 and BL-HJLG6BH32L within the manufacturer's lineup. The product serves as a fundamental optical element for basic lighting and signaling tasks, distinct from addressable or multi-color RGB solutions offered by the same brand.

LED Indication - Discrete Replacement Considerations

Cross-reference with equivalent T-1 3/4 green LEDs from other manufacturers if supply constraints exist. Verify pinout compatibility and mechanical dimensions before substitution. Ensure replacement parts meet or exceed the 25,000 mcd intensity and 20 mA current ratings.
