BLA6H0912-500,112

Overview

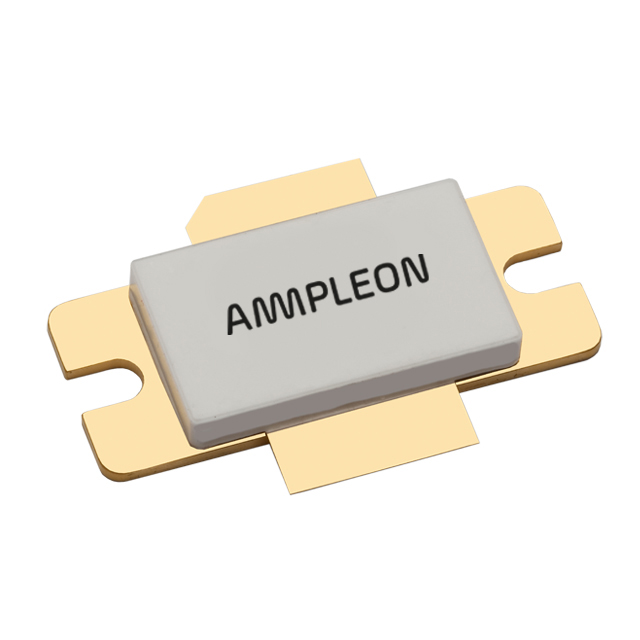

The BLA6H0912-500 is a 500 W LDMOS power transistor designed for avionics transmitter applications in the 960 MHz to 1215 MHz range. It supports Mode-S, TCAS, JTIDS, DME, and TACAN systems. Typical pulsed RF performance at 960 MHz to 1215 MHz with a 50 V supply and 100 mA quiescent current yields 450 W output power, 17 dB gain, and 50% efficiency. The device features integrated ESD protection and high ruggedness against load mismatches up to 10:1 VSWR. It utilizes an internally matched design within a flanged ceramic SOT634A package.

Feature Summary

• Internally matched for ease of use
• Integrated ESD protection
• High flexibility with respect to pulse formats
• Excellent thermal stability

Applications

• A-band power amplifiers for radar applications in the 960 MHz to 1215 MHz frequency range
• Mode-S transponder systems
• TCAS (Traffic Collision Avoidance System) transmitters
• JTIDS (Joint Tactical Information Distribution System) links
• DME (Distance Measuring Equipment) and TACAN (Tactical Air Navigation) systems

Procurement Notes

Verify the specific ordering suffix matches the required RoHS compliance status and packaging variant. Confirm that the component is sourced from authorized Ampleon channels to ensure authenticity. Check the latest datasheet revision for any updates to absolute maximum ratings or recommended operating conditions before finalizing procurement specifications.

Selection Notes

Select this component for avionics radar applications requiring high power output in the A-band. Ensure the design accommodates the 50 V drain-source voltage and manages thermal impedance effectively. Verify that the application pulse width and duty cycle align with the specified test conditions for optimal gain and efficiency performance.

Part Context

This part belongs to the BLA6H series of LDMOS avionics power transistors manufactured by Ampleon. It is specifically engineered for robust operation in demanding airborne environments. The series provides solutions for various military and commercial aviation communication and navigation standards.

Replacement Considerations

Consult official Ampleon documentation for verified cross-reference part numbers. Do not substitute without validating electrical parameters and pin compatibility.
