BLC10G20LS-240PWTZ

Overview

The BLC10G20LS-240PWT is a 240 W LDMOS power transistor designed for base station applications in the 1805 MHz to 1995 MHz frequency range. It features enhanced video bandwidth and operates with a drain-source voltage of 28 V and quiescent current of 1600 mA. Typical performance at Tcase = 25 °C includes a power gain of 19.3 dB, drain efficiency of 30%, and an adjacent channel power ratio (ACPR) of -32 dBc under 2-carrier W-CDMA conditions. The device has a thermal resistance from junction to case of 0.34 K/W and withstands a VSWR of 10:1.

Feature Summary

• Enhanced video bandwidth enabling full band operation
• Low memory effects providing excellent pre-distortability
• Internally matched for ease of use
• Integrated ESD protection

Applications

• RF power amplifiers for base stations
• Multi carrier applications in the 1805 MHz to 1995 MHz frequency range

Procurement Notes

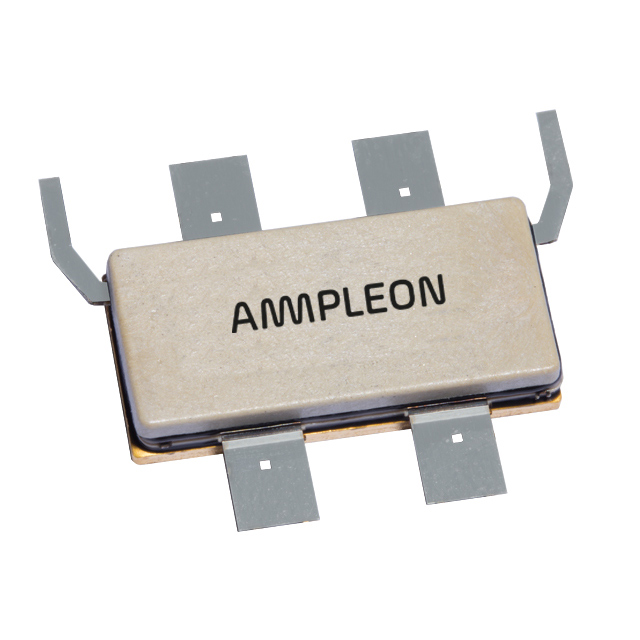

Verify the component against the official Ampleon datasheet Rev. 1 dated 20 April 2017. Confirm that the package matches SOT1275-1, which is an air cavity plastic earless flanged package with six leads. Ensure compliance with Directive 2002/95/EC regarding Restriction of Hazardous Substances (RoHS). Validate all electrical parameters against the specified test conditions provided in the product data sheet.

Selection Notes

Select this component for wideband RF power amplifier designs requiring high efficiency and low memory effects. The internal matching network simplifies circuit design by reducing external component requirements. Verify that the application environment supports the required thermal management, as the device relies on a low thermal resistance path through the flange for effective heat dissipation during continuous operation.

Part Context

This part belongs to the BLC series of LDMOS power transistors manufactured by Ampleon. The series is engineered for robust performance in wireless infrastructure. The specific model utilizes a specialized flanged package to optimize thermal transfer and mechanical stability within base station modules operating in the cellular communication bands.

Replacement Considerations

Consult the official Ampleon documentation for verified substitute part numbers. Cross-reference specifications such as power output, frequency range, and package dimensions before implementing any alternative components.

FAQ

What is the maximum load mismatch the device can withstand?

The BLC10G20LS-240PWT can withstand a load mismatch corresponding to a VSWR of 10:1 through all phases.

How is the supply current delivered in this device?

The device can operate with the supply current delivered through the combined video decoupling leads.

What is the typical thermal resistance from junction to case?

The typical thermal resistance from junction to case is 0.34 K/W when measured at a case temperature of 80 °C and a power level of 60 W.
