Product Detailed Parameters
- Description：RF MOSFET LDMOS 32V DFM6
- Series：-
- Mfr：Ampleon USA Inc.
- Package：Tape & Reel (TR)
- Technology：LDMOS
- Frequency：1452MHz ~ 1511MHz
- Gain：16.5dB
- Voltage - Test：32 V
- Current Rating (Amps)：-
- Noise Figure：-
- Current - Test：810 mA
- Power - Output：540W
- Voltage - Rated：65 V
- Grade：-
- Qualification：-
- Mounting Type：Chassis Mount
- Package / Case：SOT-1258-3
- Supplier Device Package：DFM6
- Configuration：Dual, Common Source
Download product information
Overview

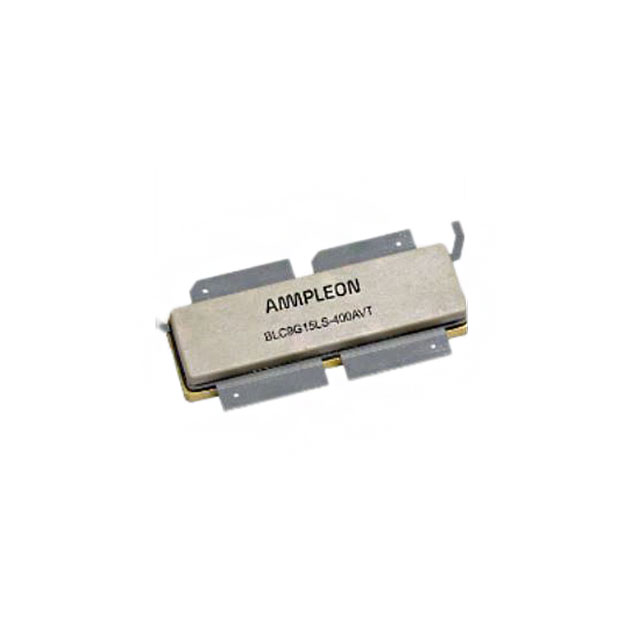

The BLC9G15LS-400AVT is a 400 W LDMOS packaged asymmetric Doherty power transistor designed for base station applications at frequencies from 1452 MHz to 1511 MHz. It features excellent ruggedness, high efficiency, and low thermal resistance providing excellent thermal stability. The device has lower output capacitance for improved performance in Doherty applications and is designed for low memory effects providing excellent digital pre-distortion capability. It is internally matched for ease of use and includes integrated ESD protection. The transistor is compliant with Directive 2002/95/EC regarding Restriction of Hazardous Substances (RoHS).
Feature Summary
- Excellent ruggedness
- High efficiency
- Low thermal resistance providing excellent thermal stability
- Lower output capacitance for improved performance in Doherty applications
- Designed for low memory effects providing excellent digital pre-distortion capability
- Internally matched for ease of use
- Integrated ESD protection
Applications
- RF power amplifiers for base stations
- Multi carrier applications in the 1452 MHz to 1511 MHz frequency range
Procurement Notes
Verify component authenticity through authorized Ampleon distributors or direct manufacturer channels. Confirm RoHS compliance status and check for any specific handling requirements related to electrostatic discharge sensitivity. Ensure proper storage conditions are maintained to prevent damage.
Selection Notes
Consider the operating frequency range of 1452 MHz to 1511 MHz when selecting this component. Evaluate the need for internal matching and integrated ESD protection. Assess thermal management requirements due to the device's power output and thermal characteristics.
Part Context
This part belongs to Ampleon's portfolio of RF power transistors, specifically designed for base station applications. It utilizes LDMOS technology and is packaged in an air cavity plastic earless flanged package (SOT1258-1) suitable for surface mount applications.
