CGGBP.25.2.A.02

Antennas RF Overview

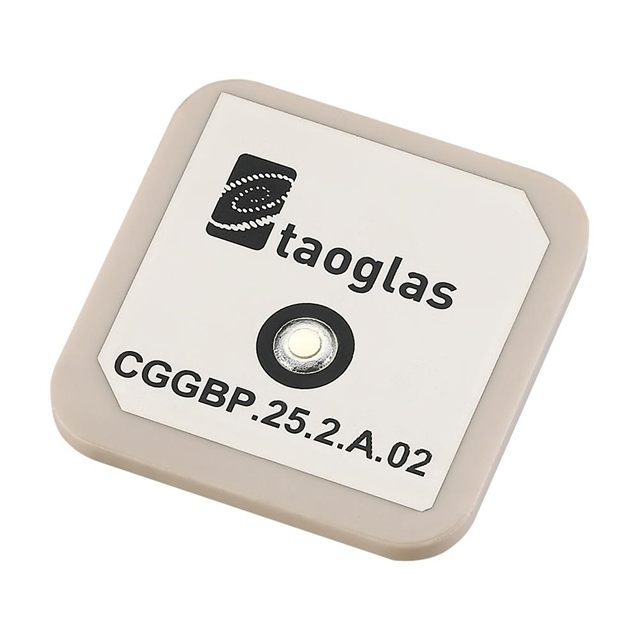

The CGGBP.25.2.A.02 is a ceramic GNSS patch antenna designed for surface mount applications. It supports GPS, GLONASS, Galileo, and BeiDou systems with operating frequencies at 1.561098 GHz, 1.57542 GHz, and 1.602 GHz. The component features a low profile thickness of 2mm and dimensions of 25mm x 25mm. It utilizes a single pin for RF feed and requires a minimum ground plane of 70x70mm to ensure optimal performance.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and BeiDou
• Low profile ceramic construction suitable for embedded applications
• Surface mount design with single pin RF feed configuration

Antennas RF Applications

• Embedded GNSS receiver modules
• Navigation devices requiring multi-constellation support
• IoT tracking hardware

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to confirm exact frequency coverage and mechanical tolerances. Ensure the host PCB design includes the recommended 70x70mm ground plane area as specified in the official datasheet to maintain signal integrity and impedance matching.

Antennas RF Selection Notes

Select this component when a low-profile, multi-band GNSS solution is required for space-constrained designs. Confirm that the application environment allows for the necessary ground plane clearance. Compare against similar Taoglas models like the CGGBP.25.4.A.02 if different height or mounting configurations are needed.

Antennas RF Part Context

This part belongs to the Taoglas CGGBP series of embedded ceramic patch antennas. These components are engineered for high reliability in mobile and fixed GNSS applications. The series offers various form factors to accommodate different enclosure constraints while maintaining consistent radiation patterns across supported satellite constellations.

Antennas RF Replacement Considerations

Consult official substitution lists for direct equivalents. Similar models within the CGGBP series may offer alternative dimensions or mounting styles but require verification of electrical compatibility.
