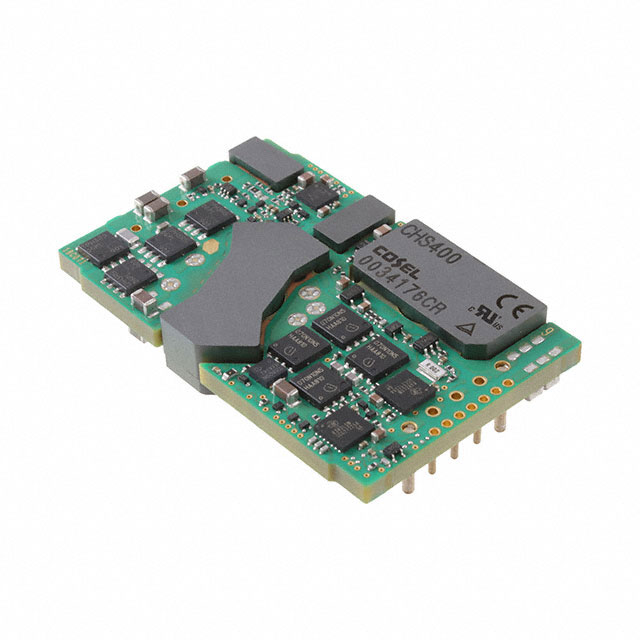

CHS4004848

CHS4004848 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 48V 403W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CHS4004848

• Description：DC DC CONVERTER 48V 403W
• Series：CHS (400W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：76V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：8.4A
• Power (Watts)：403 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：94%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cURus, TUV
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CHS4004848
