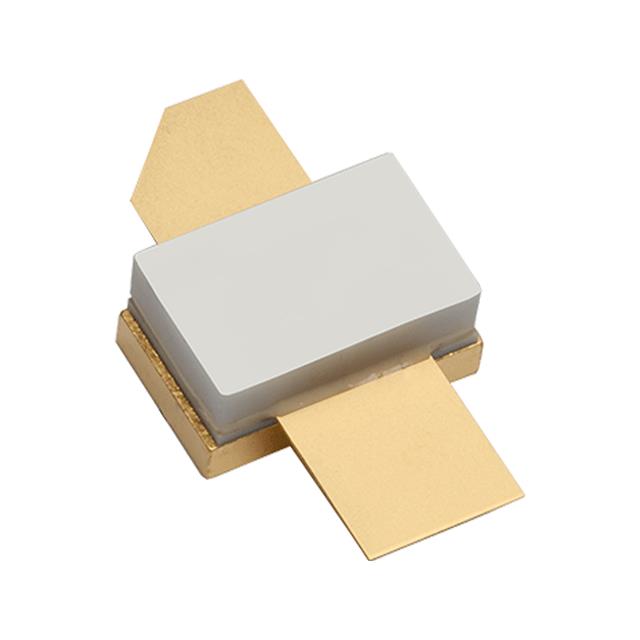

CLF1G0035-200P

Overview

The CLF1G0035-200P is a 200 W general-purpose broadband Gallium Nitride High Electron Mobility Transistor (GaN HEMT) manufactured by NXP Semiconductors. It is designed for high-power RF applications, offering broad operational bandwidth from DC to 3.5 GHz. This component supports high efficiency and linearity in radio frequency power amplification, making it suitable for demanding infrastructure environments requiring robust signal processing capabilities across wide frequency ranges.

Feature Summary

• Broadband operation capability spanning from DC up to 3.5 GHz
• High output power rating of 200 W for efficient signal amplification
• Gallium Nitride High Electron Mobility Transistor technology for enhanced performance

Applications

• 4T4R and 8T8R base station infrastructure
• Radio units targeting 40 W to 80 W power levels
• General purpose wideband RF power amplification

Procurement Notes

Verify the specific suffix 'P' indicates lead-free packaging and RoHS compliance when sourcing. Confirm the active status with authorized distributors as availability may fluctuate. Ensure the supplier provides official datasheets to validate the 200 W power rating and DC-3.5 GHz frequency range. Cross-reference part numbers carefully to distinguish between similar variants like the -100 or -50 models.

Selection Notes

Select this component for applications requiring high power density and wide bandwidth in RF systems. The GaN HEMT technology offers advantages over traditional LDMOS in terms of efficiency and thermal management. Consider the 200 W output capability against system power requirements. Evaluate the DC to 3.5 GHz range against the specific frequency needs of the target application infrastructure.

Part Context

This device belongs to NXP's portfolio of RF power macro GaN transistors designed for modern telecommunications infrastructure. It complements other models in the CLF1G0035 series, such as the -100 and -50 variants, which offer lower power ratings. The product line targets the evolving demands of 4G and 5G base stations, providing scalable solutions for different power unit configurations.

Replacement Considerations

The CLF1G0035-100P serves as a lower-power alternative within the same family. Designers must verify if the reduced power output meets system requirements before substitution. Direct replacement requires re-evaluation of thermal design and biasing circuits due to differences in power handling capabilities.
