Product Detailed Parameters
- Description：IGBT MOD 1200V 600A 3785W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2.6V @ 15V, 600A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：3785 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：100 nF @ 10 V
Download product information
Overview

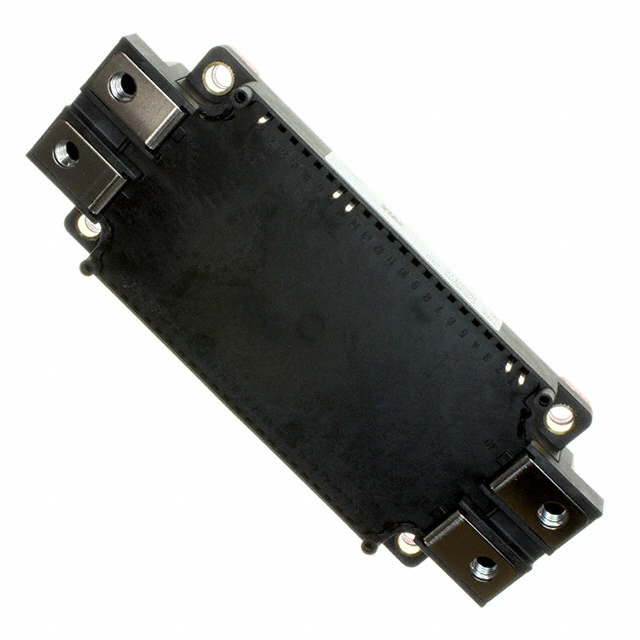

The CM600HX-24A is a single IGBT module from the NX Series by Powerex Inc. It features a collector-emitter breakdown voltage of 1200 V and a continuous collector current rating of 600 A. The device is designed for high-power switching applications, with a maximum power dissipation of 3785 W. It operates within a junction temperature range of -40°C to 150°C. The module utilizes a standard input configuration and is housed in a single-chip package.
Feature Summary
- High current capacity of 600 A for robust power handling
- 1200 V breakdown voltage suitable for medium-voltage applications
- Wide operating temperature range extending to 150°C
- NX Series construction for enhanced thermal performance
Applications
- Industrial motor drives
- High-power inverters
- Uninterruptible power supplies (UPS)
- Welding equipment
Procurement Notes
Verify the specific suffix 'HX' against the official Powerex datasheet to confirm pinout and mechanical dimensions. Confirm RoHS status as information may vary by production batch. Ensure thermal interface material compatibility with the module's baseplate requirements for proper heat dissipation in final assembly.
Selection Notes
Select this component when a single IGBT with 600 A current capability and 1200 V blocking voltage is required. Consider the NX Series packaging for applications needing efficient thermal management. Evaluate the 3785 W power dissipation limit against the system's cooling capabilities to ensure reliable operation under peak load conditions.
Part Context
The CM600HX-24A belongs to the NX Series of IGBT modules, which are engineered for high-efficiency power conversion. This series is part of Powerex's portfolio of insulated gate bipolar transistors designed for demanding industrial environments. The module represents a balance of high current density and voltage tolerance.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with CM600HA-24A or CM400HX-24A only if electrical parameters and mechanical footprints are verified identical through official manufacturer comparison sheets.
