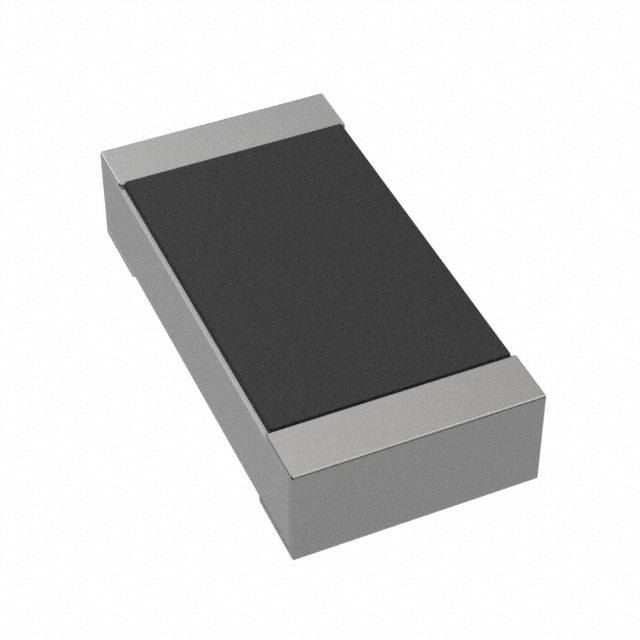

CML0510-6N8-CNH

$0.04

Description：FIXED IND 6.8NH 290MA 600MOHM SM
Series：CML0510
Mfr：Delta Electronics/Cyntec
Package：Tape & Reel (TR)

SKU:5a575f4a5660 Category: Fixed Inductors Brand: Delta Electronics/Cyntec

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CML0510-6N8-CNH is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Cyntec. Its product description is FIXED IND 6.8NH 290MA 600MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CML0510-6N8-CNH

Description：FIXED IND 6.8NH 290MA 600MOHM SM
Series：CML0510
Mfr：Delta Electronics/Cyntec
Package：Tape & Reel (TR)
Type：Thin Film
Material - Core：-
Inductance：6.8 nH
Tolerance：±0.2nH
Current Rating (Amps)：290 mA
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：600mOhm Max
Q @ Freq：8 @ 100MHz
Frequency - Self Resonant：5.5GHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：402
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)：0.020" (0.50mm)
Features：-

Fixed Inductors datasheet and documents for CML0510-6N8-CNH

CML0510-6N8-CNH

Fixed Inductors Overview

The CML0510-6N8-CNH is a fixed surface-mount inductor from the Delta Electronics/Cyntec CML0510 series. It features a shielded thin-film construction with a nominal inductance of 6.8 nH and a tolerance of ±0.2 nH. The component has a maximum DC resistance of 600 mOhm and a rated current of 290 mA. It operates within a temperature range of -40°C to 125°C and is housed in a 0402 (1005 Metric) package measuring 1.00mm x 0.50mm.

Fixed Inductors Feature Summary

Shielded thin-film inductor design for high-frequency stability
Compact 0402 surface-mount footprint
Low DC resistance for efficient power handling

Fixed Inductors Applications

RF signal filtering
High-frequency power supply circuits
Miniaturized consumer electronics

Fixed Inductors Procurement Notes

Verify component availability as this part number is listed as obsolete by some distributors. Confirm if replacement stock or authorized substitutes are required for production continuity. Check datasheet specifications against current design requirements before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring precise low-nanohenry inductance in minimal space. Ensure the circuit handles the 290 mA rated current and verify thermal management for the specified operating temperature range. Consider shielding requirements for RF interference mitigation.

Fixed Inductors Part Context

This inductor belongs to the CML0510 series, designed for high-frequency applications. It utilizes thin-film technology to achieve tight tolerances and stable performance. The series is intended for compact electronic devices where space constraints are critical.
