CMLB053T-1R0MS

Fixed Inductors Overview

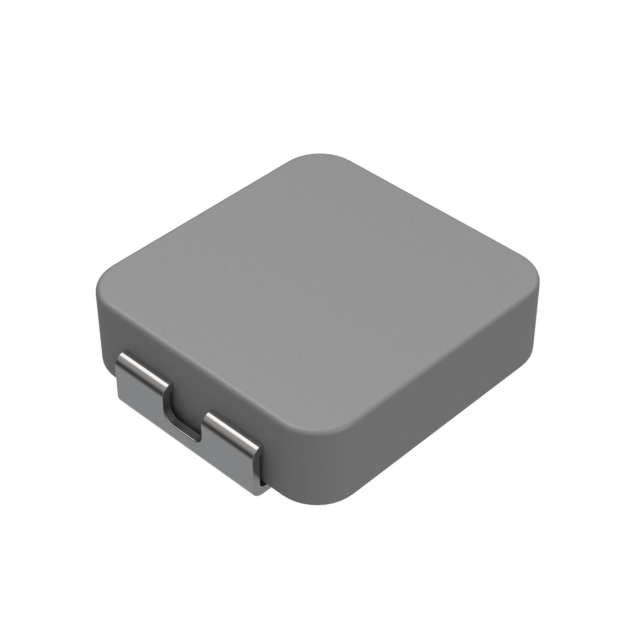

The CMLB053T-1R0MS is a shielded surface-mount power inductor manufactured by Delta Electronics/Cyntec. It features a fixed inductance of 1 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 12 mΩ and a rated current of 9.8 A. It utilizes a metal core and operates within a temperature range of -55°C to 125°C. The physical dimensions are non-standard, typically measuring approximately 4.85mm x 4.70mm in footprint with a maximum height of 3.00mm.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Metal core design supports high current applications
• Surface mount package facilitates automated assembly

Fixed Inductors Applications

• Consumer power supply circuits
• Point-of-load regulation modules
• General-purpose DC-DC converter filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Delta Electronics or Cyntec documentation to ensure authenticity. Confirm that the received components match the specified electrical parameters, particularly the 1 µH inductance and 9.8 A rating. Check for RoHS compliance markings as indicated in public listings. Ensure storage conditions adhere to moisture sensitivity level requirements before soldering.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor with high current handling capability is required for space-constrained designs. The low DCR value helps minimize conduction losses in high-current paths. Consider the physical footprint constraints during PCB layout, as the package dimensions are non-standard compared to common industry sizes. Ensure the operating environment stays within the specified temperature range.

Fixed Inductors Part Context

This component belongs to the CMLB053T series of fixed power inductors from Delta Electronics/Cyntec. The series is designed for consumer electronics and general power applications requiring reliable performance in small form factors. The '1R0' designation indicates the 1 µH inductance value, while 'MS' typically denotes the packaging and tolerance specifications.

Fixed Inductors Replacement Considerations

Publicly available substitute part numbers for this specific model were not identified in the provided source material. Engineers should consult official manufacturer cross-reference guides or datasheets for verified alternatives that match the electrical and mechanical specifications.
