CY14V101NA-BA45XI

Memory IC Overview

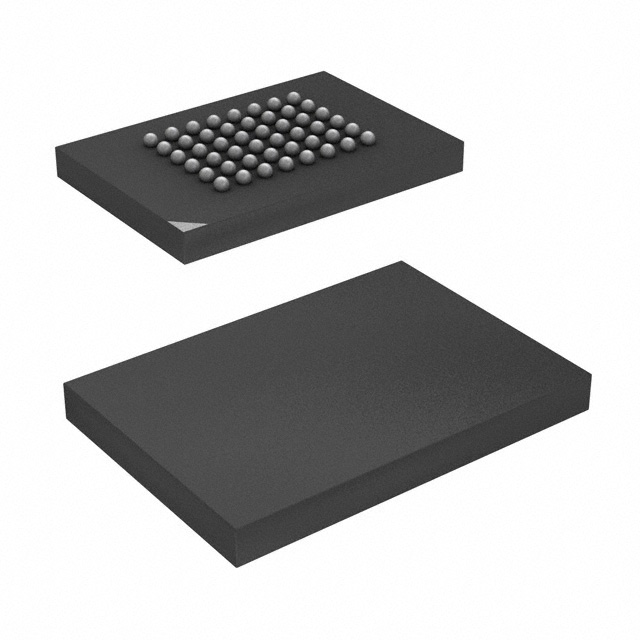

The CY14V101NA-BA45XI is a non-volatile static random-access memory (nvSRAM) device manufactured by Infineon Technologies. It provides a total storage capacity of 1 megabit, organized as 128 kilobytes by 8 bits. The component utilizes a parallel interface with a maximum access speed of 45 nanoseconds. It operates within a supply voltage range of 2.7 volts to 3.6 volts and is housed in a 48-ball fine-pitch ball grid array (FBGA) package designed for surface-mount technology.

Memory IC Feature Summary

• Combines the high-speed performance of SRAM with non-volatile data retention capabilities.

Memory IC Applications

• Industrial control systems requiring persistent configuration data
• Automotive electronics needing reliable parameter storage
• Network infrastructure equipment demanding fast data logging

Memory IC Procurement Notes

Verify the specific suffix BA45XI against official Infineon documentation to confirm pinout compatibility and electrical specifications. Ensure that the procurement channel provides valid traceability and authenticity guarantees for automotive-grade components. Confirm moisture sensitivity level handling requirements prior to assembly to prevent package damage during soldering processes.

Memory IC Selection Notes

Select this component when a design requires immediate data availability without the latency associated with flash programming cycles. This part is suitable for applications where frequent write operations occur, as it eliminates the need for complex wear-leveling algorithms typically required by EEPROM or Flash memories. Verify that the system power supply remains stable within the specified operating range to ensure data integrity.

Memory IC Part Context

This device belongs to the CY14V101 family of nvSRAM products from Infineon Technologies. The family offers various density and interface options to support different embedded memory needs. The LA/NA series variants typically target industrial and commercial environments, providing a robust solution for maintaining critical system states during power interruptions.

Memory IC Replacement Considerations

Cross-reference with CY14V101LA-BA45XIT for potential functional equivalents within the same manufacturer portfolio. Verify package dimensions and pin assignments before substituting to ensure mechanical fit on existing printed circuit boards.
