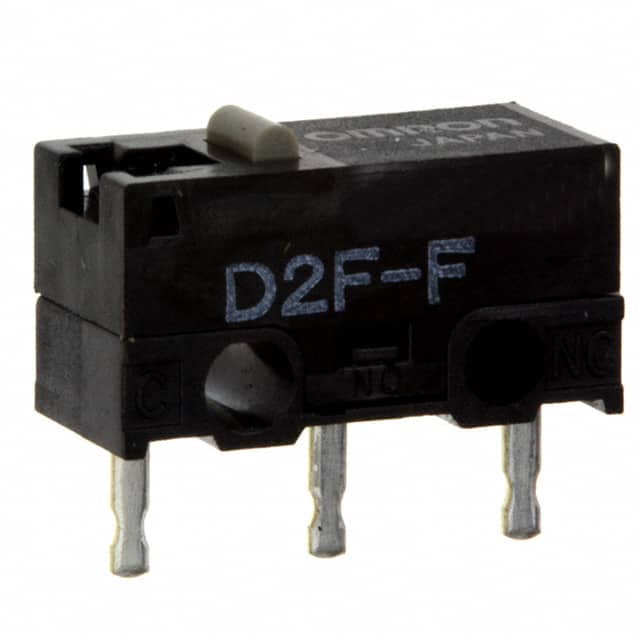

Limit Switches D2FN1001D product image

D2FN1001D

$0.54

Description：SWITCH SNAP ACTION SPDT 1A 125V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:62c550b4d3ed Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2FN1001D is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2FN1001D

Description：SWITCH SNAP ACTION SPDT 1A 125V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：1A (AC), 500mA (DC)
Voltage Rating - AC：125 V
Actuator Type：Round (Pin Plunger)
Mounting Type：Through Hole
Termination Style：PC Pin
Ingress Protection：IP40
Features：-
Operating Force：75gf
Release Force：5.099gf
Operating Position：0.217" (5.5mm)
Pretravel：0.020" (0.5mm)
Differential Travel：0.005" (0.13mm)
Overtravel：0.010" (0.25mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2FN1001D
