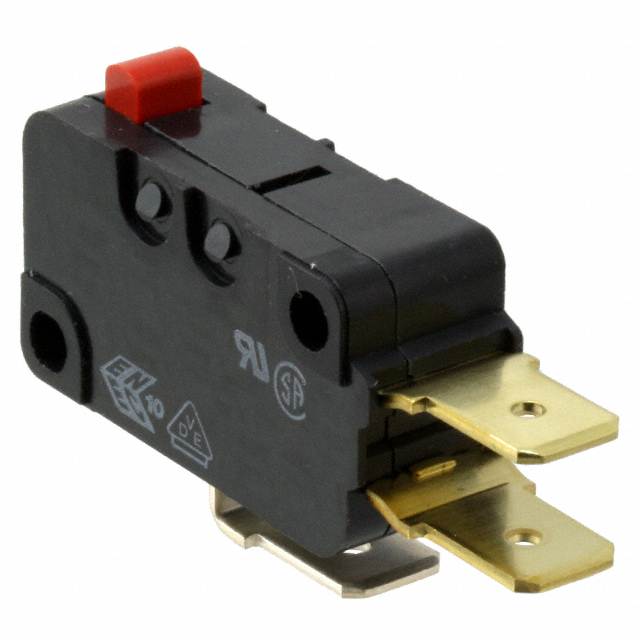

Limit Switches D3V-16-1C5 product image

D3V-16-1C5

$2.17

Description：SWITCH SNAP ACTION SPDT 16A 250V
Series：D3V
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:fb16a077f641 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D3V-16-1C5 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 16A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D3V-16-1C5

Description：SWITCH SNAP ACTION SPDT 16A 250V
Series：D3V
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：16A (AC), 600mA (DC)
Voltage Rating - AC：250 V
Actuator Type：Round (Pin Plunger)
Mounting Type：Chassis Mount
Termination Style：Quick Connect - 0.250" (6.3mm)
Ingress Protection：IP40
Features：-
Operating Force：200gf
Release Force：50gf
Operating Position：0.579" (14.7mm)
Pretravel：0.047" (1.2mm)
Differential Travel：0.016" (0.4mm)
Overtravel：0.040" (1.0mm)
Operating Temperature：-25°C ~ 105°C
Voltage Rating - DC：125 V

Limit Switches datasheet and documents for D3V-16-1C5

D3V-16-1C5
