DASLTE500NF

Antennas RF Overview

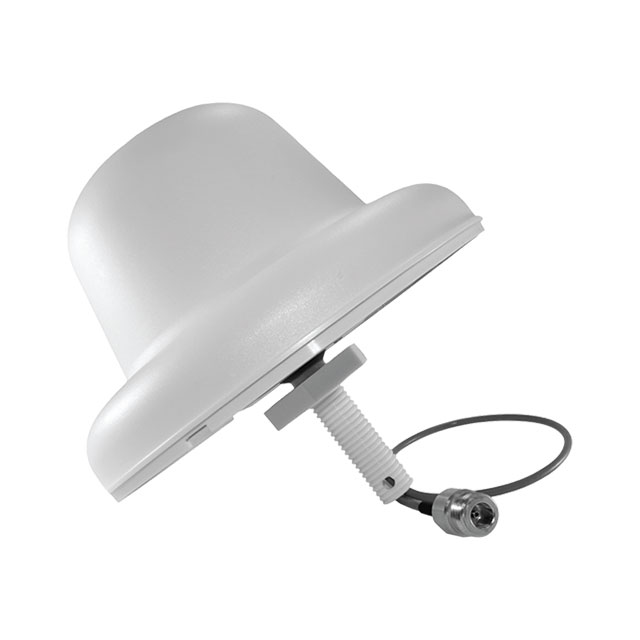

The DASLTE500NF is a PIMinator™ series low-PIM indoor omni-directional SISO antenna manufactured by Pulse Electronics. It supports wide-band frequency groups with center frequencies at 829MHz, 2.2GHz, and 5.4GHz. The component provides an 8dBi gain rating and utilizes an N-type female connector for installation.

Antennas RF Feature Summary

• Designed as a low Passive Intermodulation (PIM) solution for demanding in-building wireless environments
• Features an omni-directional radiation pattern suitable for Single-Input Single-Output (SISO) applications

Antennas RF Applications

• 2G cellular network distribution
• 3G cellular network distribution
• LTE/4G in-building coverage systems

Antennas RF Procurement Notes

Verify the obsolete part status before procurement planning. Confirm that the N-type female interface matches existing infrastructure. Ensure the 8dBi gain specification aligns with current RF link budget calculations for the intended deployment zone.

Antennas RF Selection Notes

Select this model specifically for its low-PIM characteristics required in dense multi-carrier deployments. The wide-band frequency support covers legacy 2G through LTE bands. Verify compatibility with standard N-type mounting hardware for secure panel installation.

Antennas RF Part Context

This component belongs to the PIMinator™ series of DAS antennas. It is engineered to meet strict intermodulation performance standards for indoor signal distribution systems. The design focuses on minimizing interference in high-density wireless networks.

Antennas RF Replacement Considerations

The part status is listed as Obsolete. No specific substitute part numbers are documented in the provided source material. Evaluate alternative low-PIM indoor antennas from the manufacturer's current portfolio.
