Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-211
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：Single Chopper
- Vce(on) (Max) @ Vge, Ic：2.6V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：125 A
- Power - Max：400 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：5.1 nF @ 25 V
Download product information
Overview

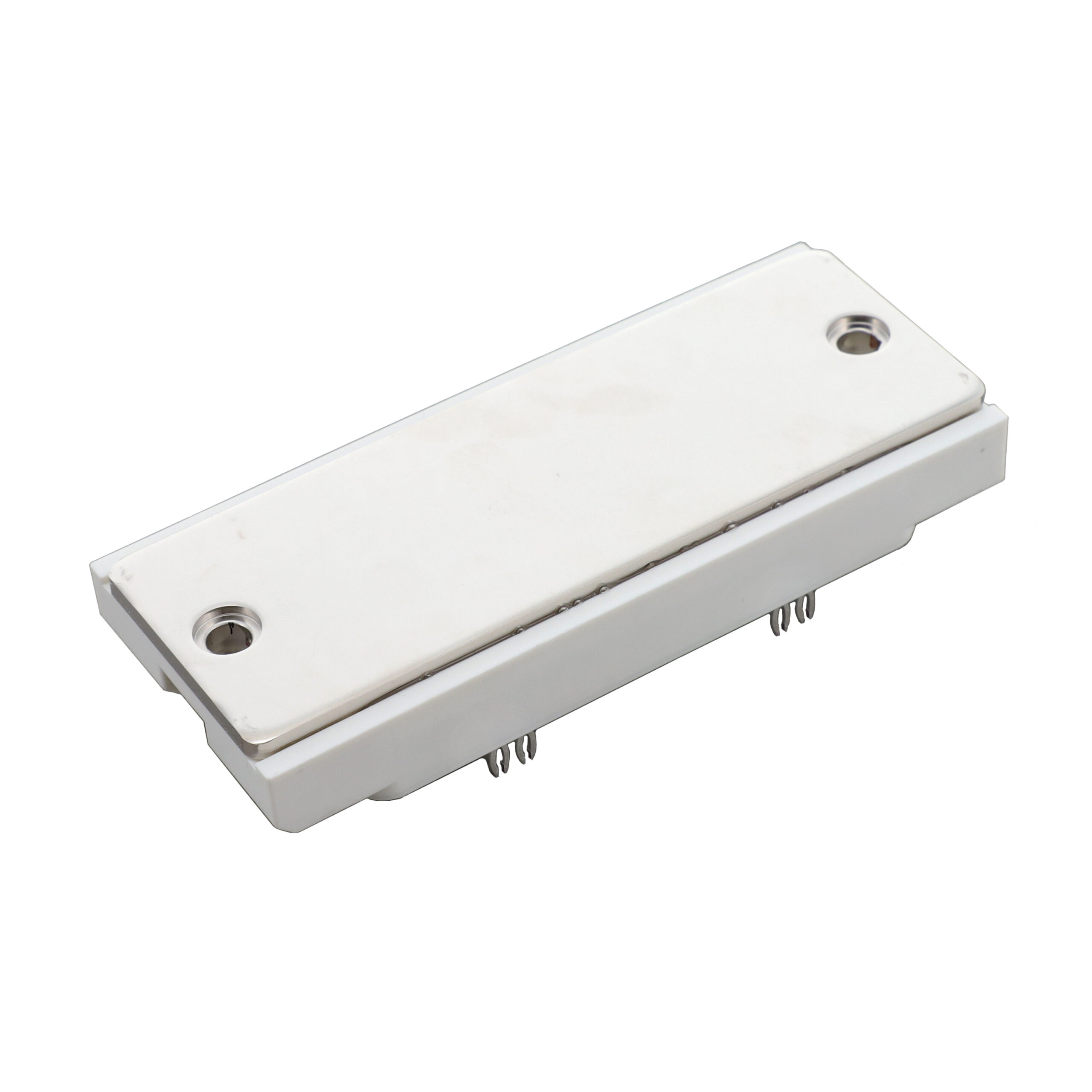

The DDB6U134N16RRB11BPSA2 is an EconoPACK™2 IGBT module featuring Low Loss IGBT2 and Emitter Controlled Diode technology with PressFIT connection. It integrates a brake chopper circuit. The rectifier diode supports a repetitive peak reverse voltage of 1600 V, maximum RMS forward current of 80 A per chip, and surge forward current up to 550 A at 150°C junction temperature. The brake chopper IGBT provides a collector-emitter voltage of 1200 V, continuous DC collector current of 75 A at 80°C case temperature, and repetitive peak collector current of 150 A. Total power dissipation is rated at 400 W at 25°C case temperature.
Feature Summary
- EconoPACK™2 housing with Al2O3 substrate for low thermal resistance
- PressFIT contact technology for reliable connection
- Integrated NTC thermistor for temperature monitoring
- RoHS compliant construction
Applications
- Auxiliary inverters
- Air conditioning systems
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix B11 against official Infineon documentation to confirm material composition and compliance status. Ensure the component matches the exact datasheet revision referenced in procurement records. Confirm that the PressFIT termination style aligns with the target PCB or busbar design requirements before finalizing orders.
Selection Notes
Select this module for applications requiring integrated braking functionality within a compact form factor. Evaluate the thermal resistance values (RthJC) against the system's cooling capacity to ensure junction temperatures remain within the specified -40°C to 125°C operating range. Verify gate drive compatibility with the internal gate resistor and threshold voltage specifications.
Part Context
This component belongs to the Infineon EconoPACK™2 series, designed for high power density applications. It combines IGBT switching elements with diodes in a single isolated base plate package. The series utilizes advanced silicon technologies to minimize switching losses while maintaining robust short-circuit capability for industrial power conversion systems.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains identical voltage ratings, current capabilities, and mechanical footprint. Verify that alternative components support the same PressFIT mounting method and include compatible thermal interface specifications.
