Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-411
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Single Chopper
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 100A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：140 A
- Power - Max：515 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：6.3 nF @ 25 V
Download product information
Overview

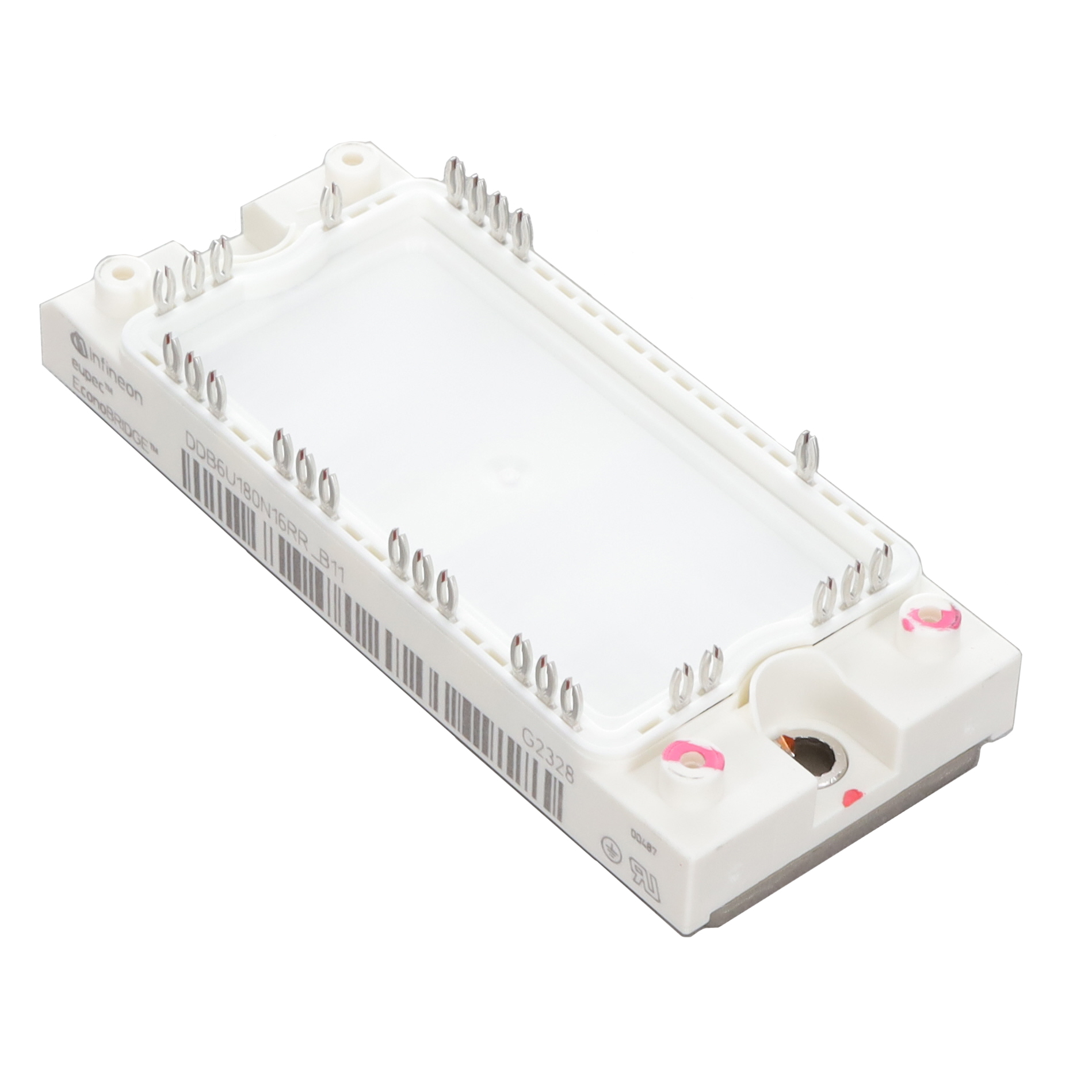

The Infineon DDB6U180N16RR_B11 is an EconoPACK™2 IGBT module featuring Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode technology with PressFIT connections. It integrates a half-controlled bridge topology with a brake chopper. The rectifier section supports a maximum repetitive peak reverse voltage of 1600 V, a maximum RMS forward current per chip of 150 A at TC=80°C, and a surge forward current limit of 1600 A. The integrated brake chopper IGBT provides a collector-emitter voltage of 1200 V, a continuous DC collector current of 100 A at TC=80°C, and a repetitive peak collector current of 200 A.
Feature Summary
- Utilizes Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode technologies for optimized switching performance.
- Incorporates PressFIT contact technology to eliminate wire bonding and enhance mechanical robustness.
- Features an isolated copper baseplate with Al2O3 substrate for high power density and low thermal resistance.
- Includes an integrated brake chopper circuit within the half-controlled bridge topology.
Applications
- Auxiliary inverters
- Air conditioning systems
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm exact configuration details. Confirm that the component meets RoHS compliance standards required for your assembly process. Ensure compatibility with PressFIT mounting tools and verify isolation test voltage requirements for your system design.
Selection Notes
Select this module for applications requiring a half-controlled bridge with integrated braking capability. Evaluate the thermal resistance values relative to your heatsink design to ensure junction temperatures remain within the specified operating range. Consider the 1200 V rating of the brake chopper IGBT when sizing the DC bus voltage.
Part Context
This component belongs to the Infineon EconoBRIDGE™ family, specifically designed as a half-controlled bridge with a brake chopper. It utilizes the EconoPACK™2 housing format, which is standardized for industrial power electronics. The module combines rectifier and brake chopper functions into a single compact unit.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout and electrical parameters carefully if considering alternative manufacturers or different series modules.
FAQ
What is the maximum repetitive peak reverse voltage for the rectifier section?
The maximum repetitive peak reverse voltage (VRRM) for the rectifier diodes is 1600 V at a junction temperature of 25°C.
What is the collector-emitter voltage rating for the integrated brake chopper IGBT?
The collector-emitter voltage (VCES) for the brake chopper IGBT is rated at 1200 V at a junction temperature of 25°C.
How does the module achieve its connection to the PCB?
The module uses PressFIT contact technology, which allows for direct insertion into plated-through holes without soldering.
