DI7A5N65D2K

$0.87

Description：MOSFET D2PAK N 650V 7.5A
Series：-
Mfr：Diotec Semiconductor
Package：Bulk

SKU:d6ae28bfd7fa Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET D2PAK N 650V 7.5A
Series：-
Mfr：Diotec Semiconductor
Package：Bulk
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：650 V
Current - Continuous Drain (Id) @ 25°C：7.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：430mOhm @ 4A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：18.4 nC @ 10 V
Vgs (Max)：±30V
Input Capacitance (Ciss) (Max) @ Vds：722 pF @ 325 V
FET Feature：-
Power Dissipation (Max)：62.5W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TO-263AB (D2PAK)
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Download product information

DI7A5N65D2K

Overview

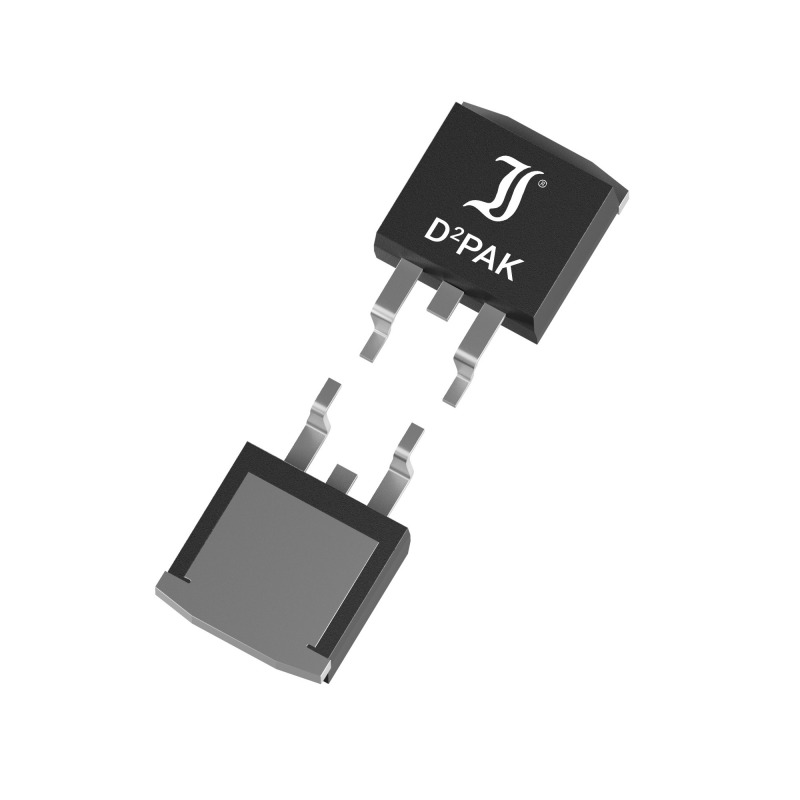

The DI7A5N65D2K is an N-Channel Power MOSFET in a TO-263AB (D2PAK) package. It features a Drain-Source voltage of 650 V and a continuous Drain current of 7.5 A at 25°C case temperature. The device has a maximum on-state resistance of 430 mΩ at VGS = 10 V and ID = 4 A. Peak pulse drain current reaches 25.0 A, with single pulse avalanche energy rated at 174 mJ. Power dissipation is 62.5 W at TC = 25°C. Junction temperature ranges from -55°C to +150°C.

Feature Summary

Advanced Trench Technology for low on-state resistance
Standard Level Gate Drive capability
ESD-protected Gate structure
Avalanche rated performance

Applications

Power Supplies
Power Factor Correction (PFC)
High Voltage DC Drives
Battery Management Systems (BMS)

Procurement Notes

Verify the specific suffix when ordering. The base model DI7A5N65D2K represents the commercial/industrial grade standard version. Suffixes -Q and -AQ denote AEC-Q101 compliance or qualification respectively. Confirm the required reliability grade matches the application environment before procurement.

Selection Notes

Select this component for high-voltage switching applications requiring robust avalanche handling. Ensure thermal management supports the specified power dissipation limits. Verify gate drive levels align with the standard level gate requirements. Check if automotive-grade variants are necessary for specific industry standards.

Part Context

This part belongs to Diotec Semiconductor's N-Channel Power MOSFET lineup. It utilizes advanced trench technology to achieve low on-state resistance within a D2PAK package. The series includes variants compliant with automotive standards for broader application scope.
