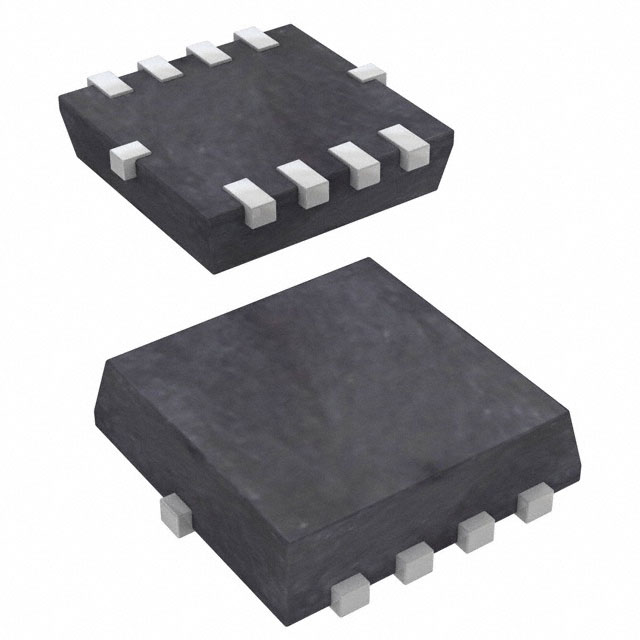

DMC3025LDV-13

$0.79

Description：MOSFET N/P-CH 15A PWRDI3333
Series：-

SKU:5b2fe28dc73e Category: FET, MOSFET Arrays Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 15A PWRDI3333
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：15A (Tc)
Rds On (Max) @ Id, Vgs：25mOhm @ 7A, 10V
Vgs(th) (Max) @ Id：2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：4.6nC @ 4.5V, 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds：500pF @ 15V, 1188pF @ 15V
Power - Max：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-PowerVDFN
Supplier Device Package：PowerDI3333-8 (Type UXC)
Grade：Automotive
Qualification：AEC-Q101

Download product information

DMC3025LDV-13

Overview

The DMC3025LDV-13 is a complementary pair enhancement mode MOSFET manufactured by Diodes Incorporated. It integrates an N-channel device (Q1) and a P-channel device (Q2) within a single PowerDI3333-8 package. The N-channel transistor supports a drain-source voltage of 30 V, with a maximum on-resistance of 25 mΩ at VGS = 10 V and a continuous drain current of 15 A. The P-channel counterpart features a -30 V breakdown voltage, a maximum on-resistance of 25 mΩ at VGS = -10 V, and a continuous drain current of -15 A. Both devices operate across a temperature range of -55°C to +150°C.

Feature Summary

Complementary N-channel and P-channel enhancement mode MOSFETs integrated in a single package
Low on-state resistance for high efficiency power management applications
Fast switching speed combined with low input capacitance
Totally lead-free, fully RoHS compliant, and halogen/antimony free

Applications

Power Management Functions
Analog Switch

Procurement Notes

Verify the specific ordering suffix '-13' against official documentation to confirm the tape and reel packaging quantity of 3000 units. Ensure that the component matches the exact datasheet revision DS38937 Rev. 1-2 to guarantee electrical characteristics align with design requirements. Cross-reference the manufacturer's marking code 'SD9' for authenticity during incoming inspection.

Selection Notes

Select this component when a matched complementary pair is required for synchronous rectification or bridge driver circuits. The PowerDI3333-8 package provides a compact footprint suitable for space-constrained designs. Evaluate thermal performance based on the junction-to-ambient resistance values provided in the datasheet under specific board layout conditions.

Part Context

This part belongs to the DMC3025 series of complementary MOSFETs from Diodes Incorporated. It shares the same core electrical specifications as the DMC3025LDV-7 variant, differing primarily in the packaging configuration. The series is designed to minimize on-state resistance while maintaining superior switching performance for efficient power management.
