DP05006R5

Overview

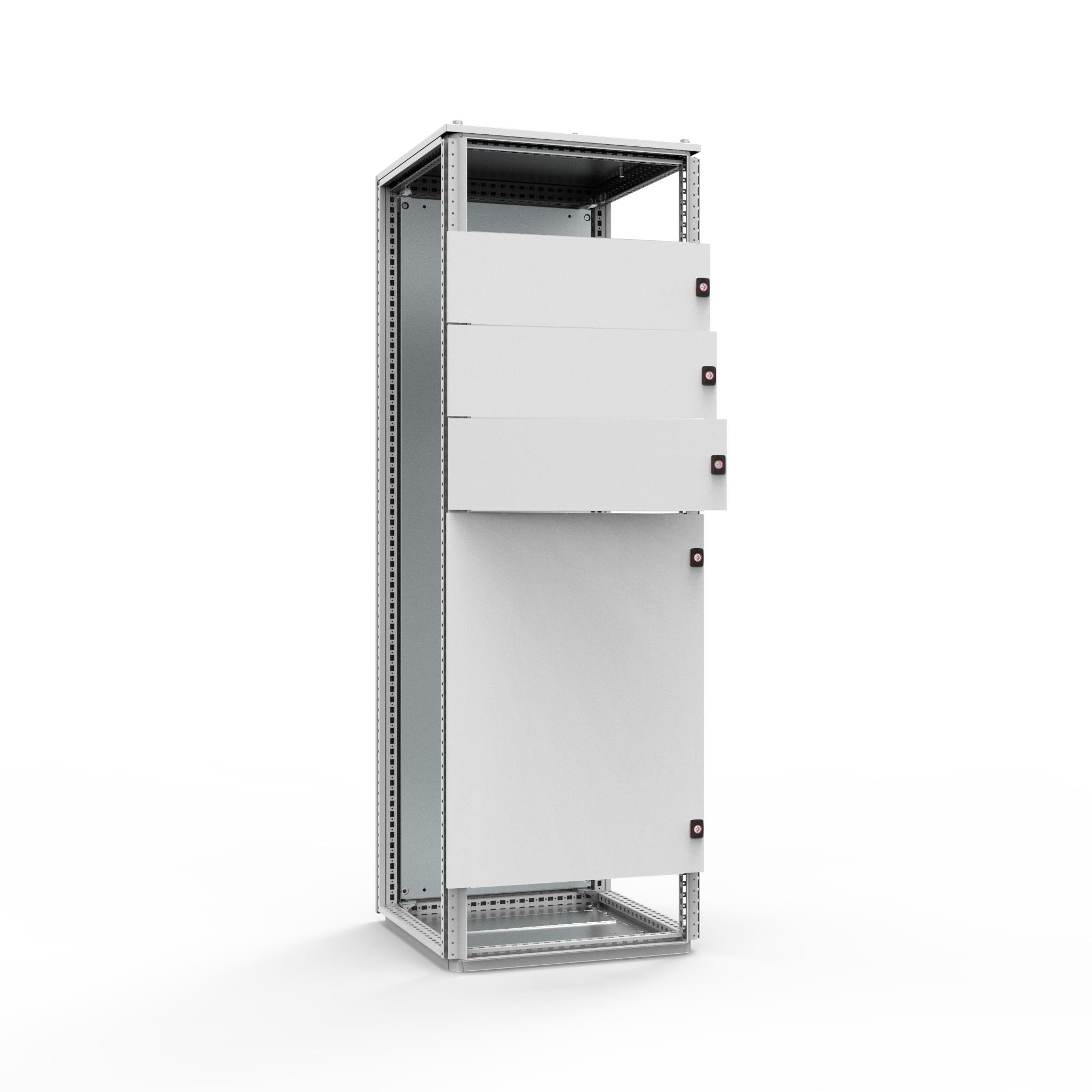

The DP05006R5 is a partial door manufactured by nVent Hoffman, designed for use with specific enclosure series. It features mild steel construction with a RAL7035 finish. The component measures 500mm in height and 600mm in width. It includes a double-bit 3 mm lock mechanism. The unit provides an IP44 ingress protection rating when installed correctly.

Feature Summary

• Divides the enclosure front into sections when used in conjunction with horizontal dividers CDH or CDHK
• Equipped with a double-bit 3 mm lock for secure access control
• Constructed from mild steel to provide structural integrity

Applications

• Dividing enclosure fronts when no full door is required
• Installation alongside horizontal divider CDH/CDHK systems
• Control panel segmentation requiring partial access

Procurement Notes

Verify compatibility with the specific enclosure model intended for installation. Confirm that the horizontal divider CDH or CDHK is present, as this partial door is designed to function in conjunction with these components. Ensure the required lock type matches operational security needs. Check surface finish requirements against environmental conditions.

Selection Notes

Select this component when a full door is unnecessary but sectioning of the enclosure front is required. It serves as a functional alternative to solid panels while maintaining access capabilities. Consider the IP44 rating for basic environmental protection. Verify dimensional fit within the target enclosure frame before procurement.

Part Context

This part belongs to the nVent Hoffman enclosure accessories line. It is categorized under rack and cabinet doors. The product supports modular enclosure configurations. It complements other hardware such as horizontal dividers to create customized internal layouts for industrial control applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official nVent Hoffman catalogs for equivalent partial doors with similar dimensions and locking mechanisms.
