DSF-28-0001

Common Mode Chokes Overview

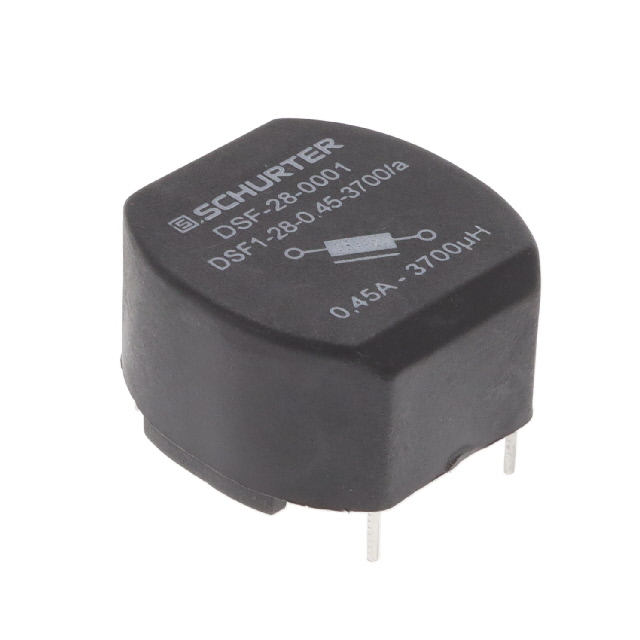

The DSF-28-0001 is a two-line common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting on printed circuit boards. This component features a rated current of 450mA and a DC resistance (DCR) of 1.9 Ohms. It belongs to the DSF-28 series, which provides magnetic compensation for single-phase applications. The device is engineered to suppress electromagnetic interference in power supply circuits, ensuring signal integrity and compliance with regulatory standards.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for two-line configurations
• Features magnetically compensated design for single-phase applications
• Supports through-hole PCB mounting for secure mechanical attachment

Common Mode Chokes Applications

• Power supply input filtering
• Electromagnetic interference suppression in electronic devices
• Signal integrity protection in communication interfaces

Common Mode Chokes Procurement Notes

Verify the exact part number DSF-28-0001 against official SCHURTER documentation to confirm specifications. Ensure compatibility with your circuit's current requirements and mounting style. Check for any recent product changes or obsolescence notices from the manufacturer before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a two-line common mode choke with 450mA rating is required. Consider the 1.9 Ohm DCR impact on voltage drop. Verify that through-hole mounting fits your PCB layout constraints. Compare with other DSF-28 variants if different current ratings are needed.

Common Mode Chokes Part Context

The DSF-28-0001 is part of SCHURTER's DSF-28 series of common mode chokes. This series offers various current ratings and inductance values for different EMI suppression needs. The components are widely used in industrial and consumer electronics for power line filtering.

Common Mode Chokes Replacement Considerations

Check SCHURTER datasheets for direct substitutes within the DSF-28 series with similar electrical characteristics. Verify pinout and physical dimensions match your existing design to ensure seamless replacement without PCB modifications.
