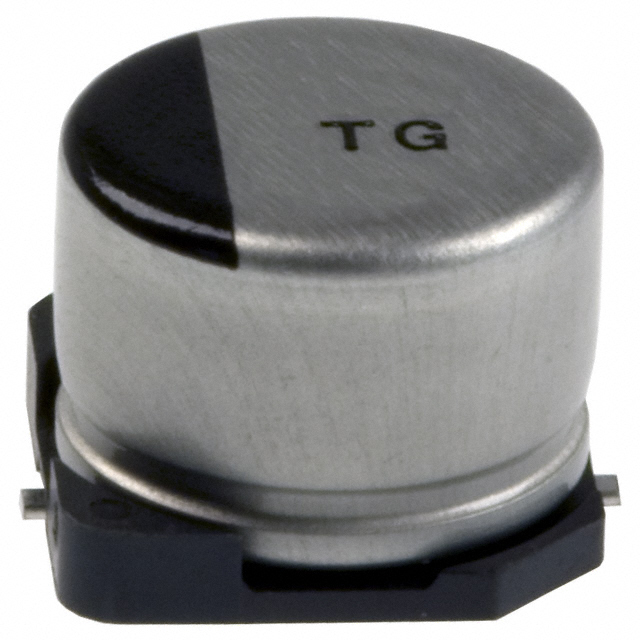

EEE-TG1A221UP

EEE-TG1A221UP is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 220UF 20% 10V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEE-TG1A221UP

• Description：CAP ALUM 220UF 20% 10V SMD
• Series：TG
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：1Ohm @ 100kHz
• Lifetime @ Temp.：1000 Hrs @ 125°C
• Operating Temperature：-40°C ~ 125°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：65 mA @ 120 Hz
• Ripple Current @ High Frequency：100 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.244" (6.20mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for EEE-TG1A221UP
