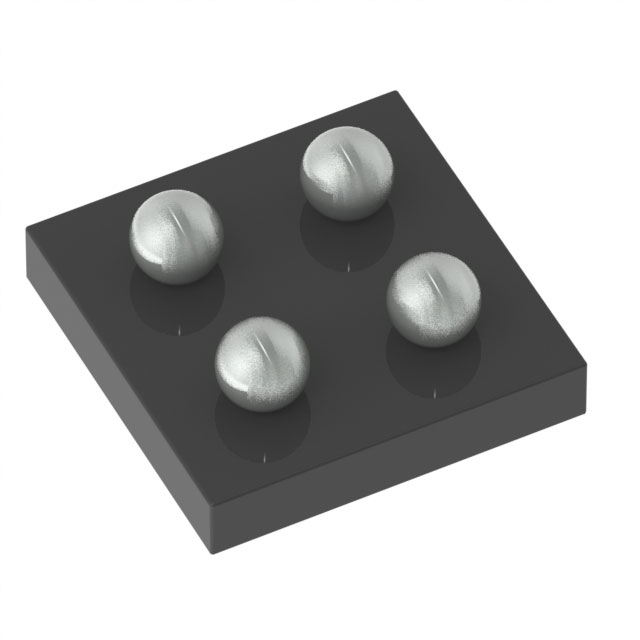

Product Detailed Parameters
- Description：MOSFET 2N-CH 12V 6A 4EFCP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Dual) Common Drain
- FET Feature：Logic Level Gate, 2.5V Drive
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：13.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：1.4W
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-EFCP (1.01x1.01)
- Grade：-
- Qualification：-
Download product information
Overview
The EFC4627R-TR is an N-channel power MOSFET array from onsemi, packaged in a Dual EFCP configuration. It features a 12V drain-source voltage rating and a continuous drain current of 6A. The device exhibits a maximum on-resistance of 29.5mΩ and a gate charge of 13.4nC at 4.5V. Designed for logic-level operation with a 2.5V drive series capability, it supports a maximum power dissipation of 1.4W and operates within a junction temperature range up to 150°C.
Feature Summary
- Dual N-channel MOSFET array integrated in a compact package
- Logic-level gate threshold enabling efficient 2.5V drive operation
- Low on-resistance for improved power efficiency
- High thermal stability supporting elevated junction temperatures
Applications
- Smartphone battery management systems
- Cell phone power circuits
- Tablet PC power distribution
- Digital still camera power modules
Procurement Notes
Verify the specific ordering suffix matches the required tape and reel configuration. Confirm that the component complies with relevant RoHS directives and environmental standards applicable to your region. Ensure the supplier provides valid traceability documentation. Cross-reference the manufacturer part number against official onsemi catalogs to avoid counterfeit components. Validate packaging specifications prior to finalizing procurement orders.
Selection Notes
Select this component for applications requiring low-voltage switching with high current density. The dual configuration allows for space-constrained designs in portable electronics. Consider the 2.5V drive capability for compatibility with modern low-power logic interfaces. Evaluate the thermal performance relative to the system's heat dissipation requirements. Ensure the 12V rating aligns with the target circuit's voltage levels.
Part Context
This part belongs to onsemi’s EliteDrive series, optimized for portable consumer electronics. The EFCP package provides a small footprint suitable for mobile devices. It complements other low-voltage power solutions in the manufacturer’s portfolio for smartphone and tablet applications.
Replacement Considerations
Direct substitutes include the EFC4621R and EFC4627R variants. Verify pinout compatibility and electrical parameters before substitution. Consult official cross-reference guides for alternative packages or updated revisions.
