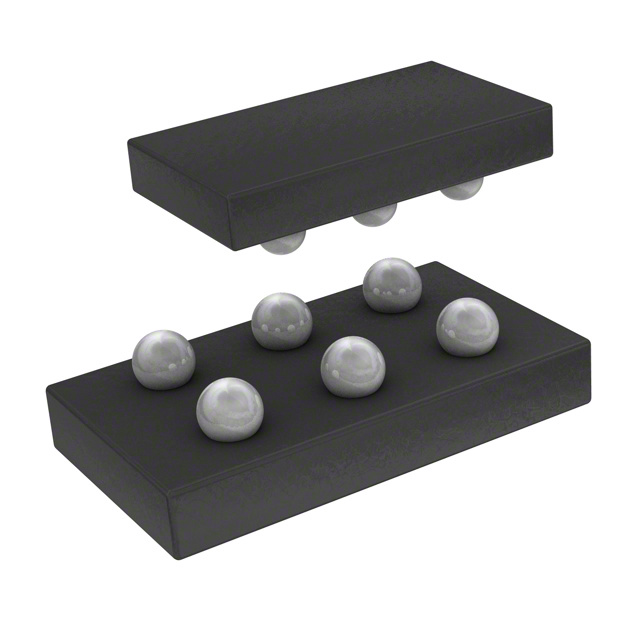

EFC6601R-TR

FET, MOSFET Arrays Overview

The EFC6601R-TR is an N-Channel Power MOSFET manufactured by onsemi. It features a 2.5V drive capability and utilizes a common-drain configuration. The device incorporates an internal protection diode and is designed for low-voltage applications. It complies with halogen-free standards and offers robust electrostatic discharge (ESD) protection rated at 2KV HBM. This component serves as a switch for lithium-ion battery charging and discharging circuits, providing efficient power management in portable electronic devices.

FET, MOSFET Arrays Feature Summary

• 2.5V drive voltage support
• Common-drain topology
• Integrated protection diode
• Halogen-free compliance

FET, MOSFET Arrays Applications

• Lithium-ion battery charging switches
• Battery discharging control circuits
• Low-voltage power switching applications

FET, MOSFET Arrays Procurement Notes

Verify the manufacturer marking and date code to ensure authenticity from onsemi or authorized Sanyo Semicon Device sources. Confirm the -TR suffix indicates tape-and-reel packaging if required for automated assembly. Check for RoHS and halogen-free certifications relevant to your manufacturing region. Ensure the part number matches the specific N-Channel MOSFET variant rather than other similar designations.

FET, MOSFET Arrays Selection Notes

Select this component when a 2.5V logic-level drive is available and a common-drain configuration is required for battery management systems. Consider the integrated protection diode for simplified circuit design. Verify that the 2KV HBM ESD rating meets the environmental requirements of the target application. Compare electrical characteristics against alternative N-Channel MOSFETs if higher current or voltage ratings are needed.

FET, MOSFET Arrays Part Context

This part belongs to the family of power MOSFETs used in portable electronics. It is often associated with Sanyo Semicon Device origins before acquisition by onsemi. Similar parts include the EFC6601R without the reel suffix. The device is distinct from linear regulators or ESD protection arrays found in the same manufacturer's portfolio.

FET, MOSFET Arrays Replacement Considerations

Direct substitutes may include the EFC6601R (non-reel version). Other N-Channel MOSFETs with 2.5V drive and common-drain configurations can be considered if pin compatibility and electrical parameters match. Verify package dimensions and thermal characteristics before substitution.
