EHT-114-01-F-D

Headers, Male Pins Overview

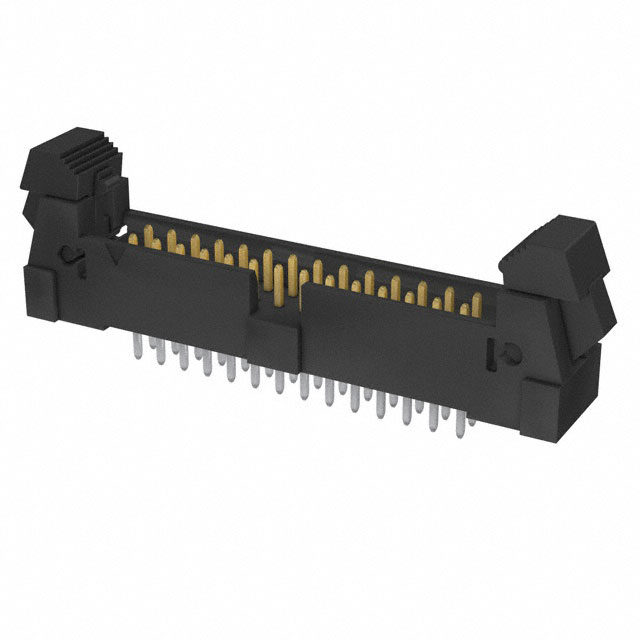

The EHT-114-01-F-D is a 2.00 mm pitch shrouded IDC ejector header manufactured by Samtec. It features a dual row configuration with 28 contacts, utilizing phosphor bronze terminals plated with gold flash over nickel for the mating interface and tin over nickel for termination. The insulator is constructed from black liquid crystal polymer (LCP). Designed for surface mount or through-hole integration, this male connector supports latch-and-eject functionality to secure mating TCSD cable assemblies.

Headers, Male Pins Feature Summary

• Shrouded design with integrated ejector mechanism for secure mating
• Gold flash over nickel plating on contact interfaces
• Black LCP insulator material for thermal stability
• Compatible with TCSD series IDC socket cable assemblies

Headers, Male Pins Applications

• High-density board-to-cable interconnects
• IDC cable assembly integration
• Industrial control panel connections
• Telecommunications equipment backplanes

Headers, Male Pins Procurement Notes

Verify the specific suffix requirements against the official Samtec part number configuration guide. Confirm that the 'F' designation matches the required gold flash plating specification for your application. Ensure the base model EHT-114-01-D aligns with the intended mounting style and tail option before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 28-position, 2-row connection is required with a 2.00 mm spacing. The gold-plated contacts are suitable for low-signal applications requiring reliable conductivity. Verify PCB layout compatibility with the recommended footprint provided in the datasheet to ensure proper mechanical retention during IDC insertion cycles.

Headers, Male Pins Part Context

This part belongs to the EHT series of shrouded IDC ejector headers. It is designed to mate specifically with TCSD series IDC socket cable assemblies. The series offers various pin counts and mounting options, providing a standardized solution for robust board-to-cable connectivity in compact electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include EHT-114-01-S-D for silver plating or EHT-114-01-TM-D for tin plating. Cross-series replacements require verification of pitch, row count, and mating interface dimensions to ensure mechanical and electrical compatibility.
