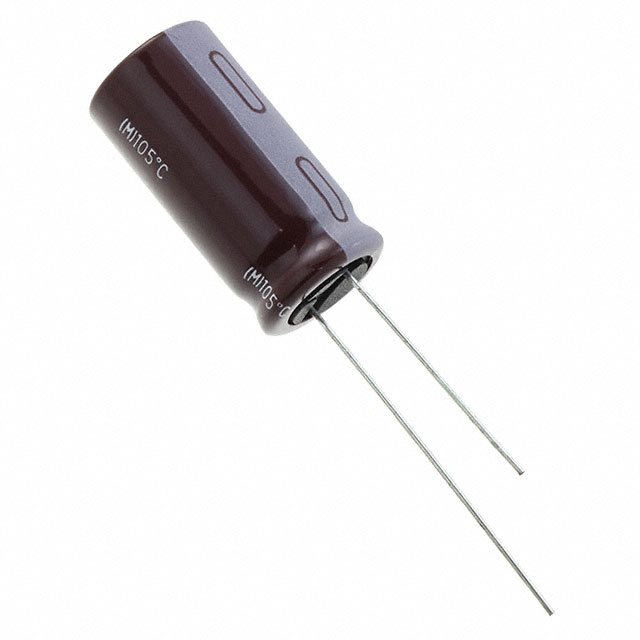

EKZN100ELL392MK25S

EKZN100ELL392MK25S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 3900UF 20% 10V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EKZN100ELL392MK25S

• Description：CAP ALUM 3900UF 20% 10V RADIAL
• Series：KZN
• Mfr：Chemi-Con
• Package：Bulk
• Capacitance：3900 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：10000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：2.4 A @ 120 Hz
• Ripple Current @ High Frequency：3.2 A @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.492" Dia (12.50mm)
• Height - Seated (Max)：1.043" (26.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：19 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EKZN100ELL392MK25S
