EP4CGX30BF14C7N

Field Programmable Gate Array Overview

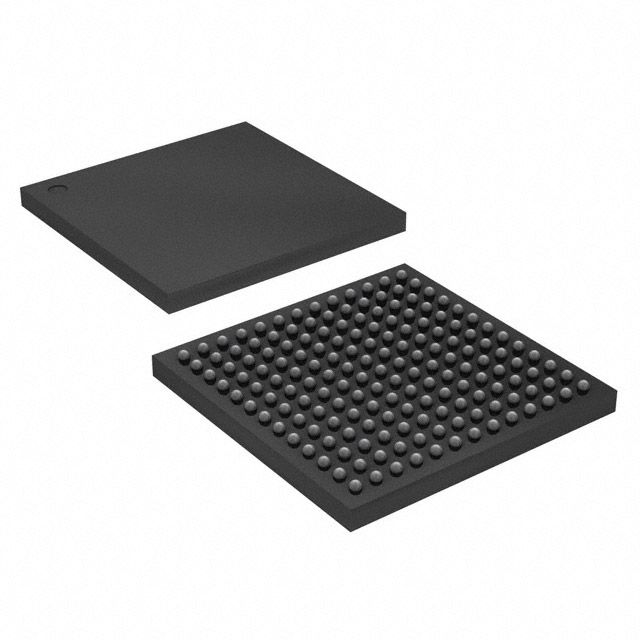

The EP4CGX30BF14C7N is a Cyclone IV GX Field Programmable Gate Array manufactured by Altera. It features 29,440 logic elements and 1,840 Logic Array Blocks within a 169-LBGA package. The device includes 1,105,920 bits of embedded memory and supports 72 I/O pins. It operates with a supply voltage range of 1.16V to 1.24V and functions at temperatures between 0°C and 85°C TJ. The component utilizes surface mount installation and is RoHS compliant.

Field Programmable Gate Array Feature Summary

• Integrated high-speed transceivers supporting data rates up to 2.5 Gb/s for serial communication applications
• SRAM-based architecture requiring external configuration memory for bitstream loading upon power-up
• Dedicated hardware resources including multipliers and Phase-Locked Loops for digital signal processing tasks

Field Programmable Gate Array Applications

• Industrial control systems requiring programmable logic interfaces
• Communication protocol conversion and bridging
• Data acquisition front-end signal processing

Field Programmable Gate Array Procurement Notes

Verify the specific suffix C7N against the manufacturer's official datasheet to confirm the commercial temperature grade and RoHS compliance status. Ensure the ordering documentation matches the exact part number to avoid confusion with industrial grade variants or different package options. Cross-reference the MSL rating during storage handling procedures.

Field Programmable Gate Array Selection Notes

Select this model when moderate logic density combined with high-speed serial capabilities is required. Compare total embedded memory capacity against application buffering needs. Verify that the 169-ball FBGA footprint fits the target PCB layout constraints. Confirm that the commercial temperature range meets the operational environment requirements.

Field Programmable Gate Array Part Context

This component belongs to the Cyclone IV GX family, designed for cost-sensitive applications needing Gigabit Transceiver functionality. It sits below higher-density Stratix devices in performance but offers greater flexibility than fixed-function ASICs. The series targets mid-range embedded logic designs.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements are limited due to specific package and speed grade variations. Consider EP4CGX30BF14I7N for industrial temperature range compatibility if thermal conditions exceed 85°C. Verify electrical parameter equivalence before substituting.
