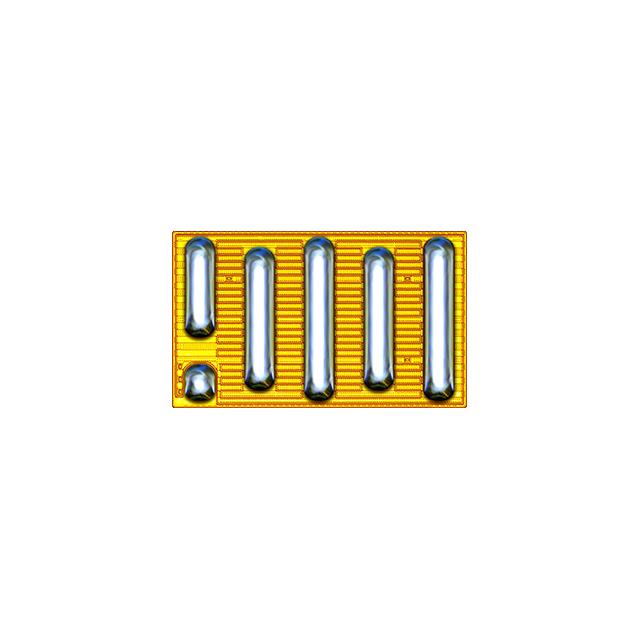

EPC2619

$3.89

Description：TRANS GAN 100V .0042 OHM 6LGA
Series：eGaN®
Mfr：EPC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ba98818a6083 Category: Single FETs, MOSFETs Brand: EPC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANS GAN 100V .0042 OHM 6LGA
Series：eGaN®
Mfr：EPC
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：29A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：5V
Rds On (Max) @ Id, Vgs：3.3mOhm @ 16A, 5V
Vgs(th) (Max) @ Id：2.5V @ 5.5mA
Gate Charge (Qg) (Max) @ Vgs：8.3 nC @ 5 V
Vgs (Max)：+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds：1180 pF @ 50 V
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-40°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：Die
Package / Case：Die

Download product information

EPC2619

Overview

The EPC2619 is an enhancement-mode Gallium Nitride Field-Effect Transistor (eGaN FET) designed for high-frequency power conversion and motor drive applications. It features a 100 V drain-source breakdown voltage and a low on-resistance of 4.2 mΩ in a compact 6-lead LGA package. This component serves as the primary switching element in reference designs such as the EPC9159KIT bidirectional LLC converter and the EPC9193HCKIT BLDC motor drive inverter, enabling high power density and efficient operation in demanding environments.

Feature Summary

Utilizes eGaN technology to achieve high switching speeds and reduced conduction losses
Optimized for wide input DC voltage ranges suitable for diverse power architectures
Enables significant reduction in magnetic component size and system weight through high-frequency operation

Applications

Bidirectional LLC converters for server power supplies
BLDC motor drive inverters for robotics and drones
High-density power modules for AI and machine learning infrastructure

Procurement Notes

Verify that the specific order corresponds to the EPC2619 part number rather than the associated evaluation kits like EPC9159KIT or EPC9193HCKIT. Confirm the package type is the 6-lead LGA configuration. Ensure compatibility with intended gate drivers and thermal management solutions before integration into final designs.

Selection Notes

Select this device when a 100 V rating and low Rds(on) are required for high-efficiency switching. It is suitable for designs prioritizing miniaturization and high power density. Consider its performance in both synchronous buck and inverter configurations as demonstrated in official EPC reference designs.

Part Context

The EPC2619 is a core component within the EPC eGaN FET family, specifically engineered for power management and motor control. It is integrated into development boards such as the EPC9159KIT for power conversion and the EPC9193 series for motor driving, highlighting its versatility in modern electronic systems requiring robust and compact semiconductor solutions.
