ESP-16-222

Power Line Filter Modules Overview

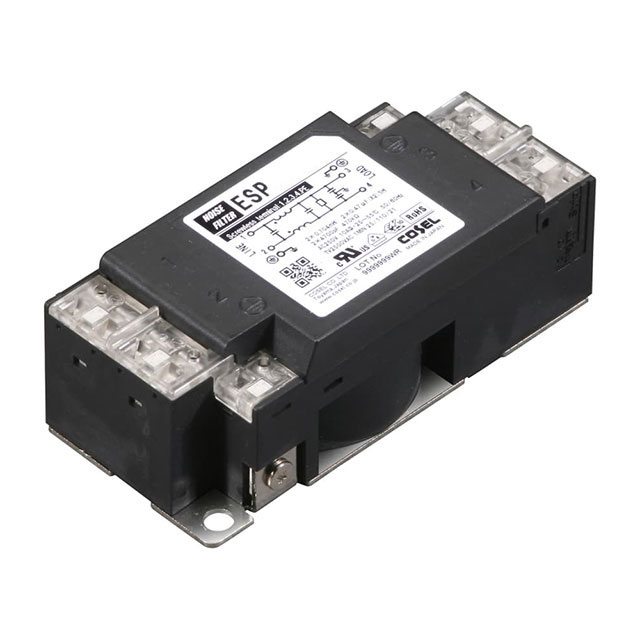

The ESP-16-222 is a single-phase EMI/EMC power line filter manufactured by Cosel USA, Inc. It features a chassis mount design with screwless terminal block connections. The component supports a voltage rating of 250 VAC and 250 VDC, with a current capacity of 16 A. It includes a capacitance value of 2.2 nF and maintains a leakage current of 250 uA. The unit operates within a frequency range of 150 kHz to 1 MHz and complies with UL, CSA, DIN, and ENEC standards.

Power Line Filter Modules Feature Summary

• Provides common mode noise suppression for single-phase AC/DC power lines
• Utilizes a screwless terminal block interface for secure electrical connections
• Designed for direct chassis mounting to facilitate integration into equipment enclosures

Power Line Filter Modules Applications

• Industrial control systems requiring electromagnetic interference reduction
• Medical equipment power supplies adhering to strict EMC regulations
• Commercial IT infrastructure power distribution units

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the ESP-16-222 to confirm compliance certifications such as UL and VDE. Ensure the installation environment supports the specified operating temperature range of -40°C to 85°C. Confirm that the chassis mounting holes align with the mechanical drawings provided in the official documentation before procurement.

Power Line Filter Modules Selection Notes

Select this model when a 16 A current rating is required for single-phase applications. The 2.2 nF capacitance value is suitable for standard EMI attenuation needs. Compare against the ESP-16-332 if higher capacitance is necessary, or the ESP-10-222 if lower current handling is sufficient for the specific circuit design requirements.

Power Line Filter Modules Part Context

This component belongs to the ES series of power line filters from Cosel. The series offers various current ratings and capacitance options to suit different power line filtering requirements. The ESP-16-222 specifically addresses the need for robust noise filtration in high-current single-phase environments while maintaining a compact form factor for chassis integration.

Power Line Filter Modules Replacement Considerations

The ESP-16-222-D is listed as a related variant. Verify if the suffix indicates any functional differences or packaging changes. Direct substitution requires confirming identical pinout, mounting dimensions, and electrical specifications against the original design requirements.
