F-107Z

$19.41

Description：PWR XFMR LAMINATED 48VA CHAS MT
Series：Control Transformers
Mfr：Triad Magnetics
Package：Box

SKU:928a07cb62c9 Category: Power Transformers Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F-107Z is listed in the Power Transformers range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is PWR XFMR LAMINATED 48VA CHAS MT. Review the specifications below when checking this part for your BOM.

Power Transformers specifications for F-107Z

Description：PWR XFMR LAMINATED 48VA CHAS MT
Series：Control Transformers
Mfr：Triad Magnetics
Package：Box
Type：Laminated Core
Voltage - Primary：115V, 230V
Voltage - Secondary (Full Load)：Parallel 12V, Series 24V
Current - Output (Max)：Parallel 4A, Series 2A
Primary Winding(s)：Dual
Secondary Winding(s)：Dual
Center Tap：No
Power - Max：48VA
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Size / Dimension：92.07mm L x 60.32mm W
Height - Seated (Max)：85.73mm
Voltage - Isolation：1500Vrms
Weight：2.5 lbs (1.1 kg)

Power Transformers datasheet and documents for F-107Z

F-107Z

Power Transformers Overview

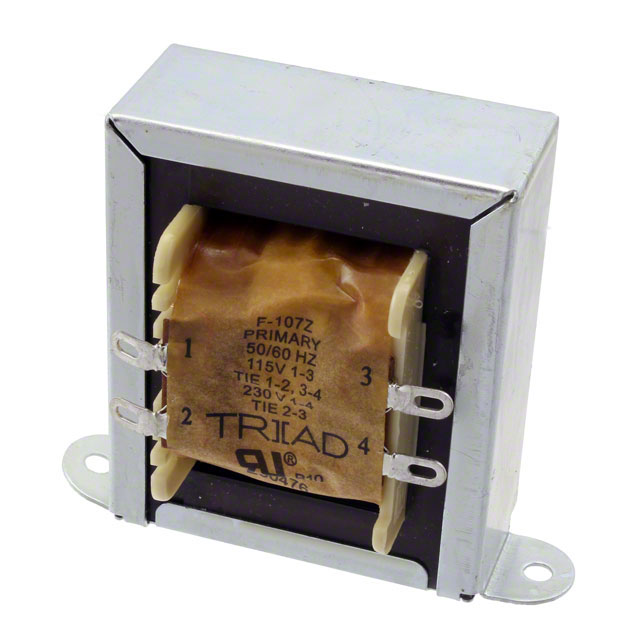

The Triad Magnetics F-107Z is a chassis-mount industrial power transformer with a 48 VA rating. It features a laminated bobbin core and accepts 115V or 230VAC primary input at 50/60Hz. The secondary output provides 24VCT in series configuration at 2.0A, or 12V in parallel configuration at 2.0A. Physical dimensions are 3.687 inches in length, 1.812 inches in width, and 2.25 inches in height. It utilizes quick connect terminals for electrical interfacing.

Power Transformers Feature Summary

Chassis mount design with quick connect terminals
Laminated bobbin core construction
Dual voltage secondary output options

Power Transformers Applications

Industrial control panels
Equipment requiring isolated AC power
Chassis-mounted electronic enclosures

Power Transformers Procurement Notes

Verify the specific datasheet version to confirm terminal type and mounting hole specifications. Ensure the required secondary configuration (series 24VCT or parallel 12V) matches the application circuit. Confirm that the chassis opening dimensions accommodate the transformer's physical footprint of 3.687 x 1.812 inches.

Power Transformers Selection Notes

Select this component when a 48 VA isolation transformer is needed for chassis installation. The dual secondary winding allows flexibility between 24VCT and 12V outputs. Verify that the primary voltage matches the available supply (115V or 230V). Consider thermal management requirements within the enclosure due to the iron core construction.

Power Transformers Part Context

This model belongs to Triad Magnetics' industrial power transformer lineup. It serves as a standard isolation solution for machinery and control systems. The F-series designation typically indicates chassis-mount configurations with robust mechanical mounting provisions suitable for permanent equipment integration.
