F1250AA10

Power Line Filter Modules Overview

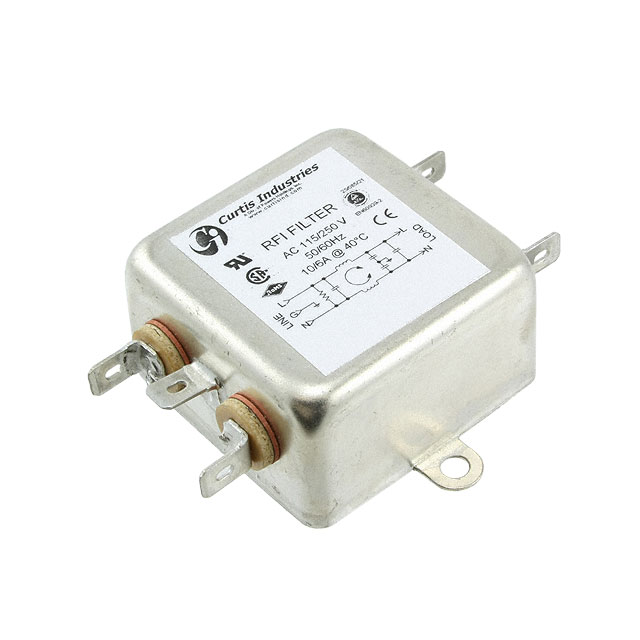

The Curtis Industries F1250AA10 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features a single-stage filtering configuration with quick connect terminals for simplified integration. The component is rated for a maximum voltage of 250VAC at 50/60Hz frequencies. It supports a rated current capacity of 10A, ensuring effective noise suppression in power line applications requiring robust electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise filtration for power lines
• Chassis mount design for secure installation
• Quick connect terminal interface for rapid wiring

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Commercial machinery noise suppression
• Electrical control panel EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific current rating and voltage specifications against your system requirements before procurement. Confirm that the quick connect terminal type matches your existing wiring harness or connector setup. Ensure the chassis mounting dimensions are compatible with your enclosure design to guarantee proper physical fit and electrical grounding.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, 10A rated EMI filter is required for chassis-mounted applications. Consider the quick connect feature if rapid assembly or maintenance access is a priority. Evaluate the single-stage performance against more complex multi-stage filters if higher attenuation levels are necessary for your specific electromagnetic environment.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1200/F1250 series of RFI filters. These modules are engineered for general-purpose electromagnetic interference suppression in AC power circuits. The series offers various current ratings and voltage configurations to suit different industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Curtis Industries F1250 series variants for different current ratings. Verify compatibility with third-party single-phase EMI filters offering similar 10A ratings and chassis mount footprints. Ensure any substitute maintains the same quick connect terminal style and voltage specifications.
