F1299AA06

Power Line Filter Modules Overview

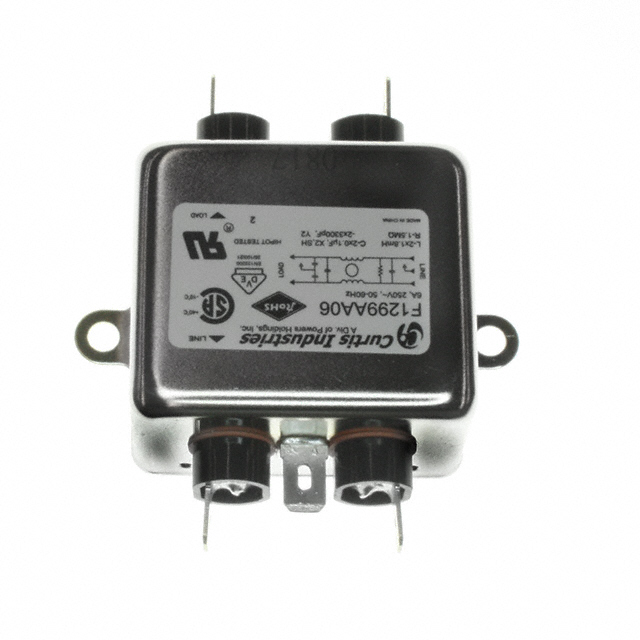

The Curtis Industries F1299AA06 is a single-phase EMI/RFI power line filter module designed for commercial applications. It features an IEC 320-C14 receptacle connector style with panel mount installation via screw holes. The unit is rated for 2A current and 250VAC voltage at 50/60Hz operation. It utilizes quick connect terminals (0.250" or 6.3mm) for circuit termination. The component includes a fuse holder but does not include the fuse itself. Certified by CE, CSA, TUV, and UR agencies, it meets RoHS3 standards.

Power Line Filter Modules Feature Summary

• Integrated EMI/RFI filtering for commercial grade noise suppression
• Built-in fuse holder for overcurrent protection capability
• Panel mount design with standardized cutout dimensions
• IEC 320-C14 input receptacle for standard power cord attachment

Power Line Filter Modules Applications

• Industrial equipment power entry
• Medical device power supplies
• Commercial machinery control panels
• Test and measurement instrument power interfaces

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'AA06' against the manufacturer datasheet to confirm terminal type and mounting configuration. Ensure the required panel cutout matches the specified rectangular dimensions. Confirm that the internal fuse holder compatibility aligns with the selected fuse specifications, as fuses are not included. Check for updated certification marks if deploying in regions requiring specific regulatory compliance updates.

Power Line Filter Modules Selection Notes

Select this module when a combined power entry and EMI filtration solution is required for single-phase AC circuits. The 2A rating suits low-power control systems rather than high-load applications. Consider the panel thickness constraints relative to the mounting hardware. Verify that the quick-connect terminal spacing matches the PCB or wire harness layout. Ensure the operating temperature range of the filter media exceeds the environmental conditions of the enclosure.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1299 series of power line filter modules. This series generally offers single-stage filtering solutions for commercial applications. The F1299 series typically provides a compact alternative to discrete filter components, integrating the receptacle, filter network, and fuse holder into a single chassis-mounted unit for simplified assembly.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers: FN9246-6-06 (TE Connectivity Schaffner). Verify pinout, mounting hole patterns, and electrical ratings before substitution.

Power Line Filter Modules FAQ

Does the F1299AA06 include a fuse?

No, the module includes a fuse holder but does not contain the fuse itself.

What is the recommended panel cutout size?

The required panel opening is rectangular, measuring 30.50mm x 22.90mm.

What type of termination does this module use?

It uses quick connect terminals with a 0.250 inch (6.3mm) blade width.
