F1400AA06

Power Line Filter Modules Overview

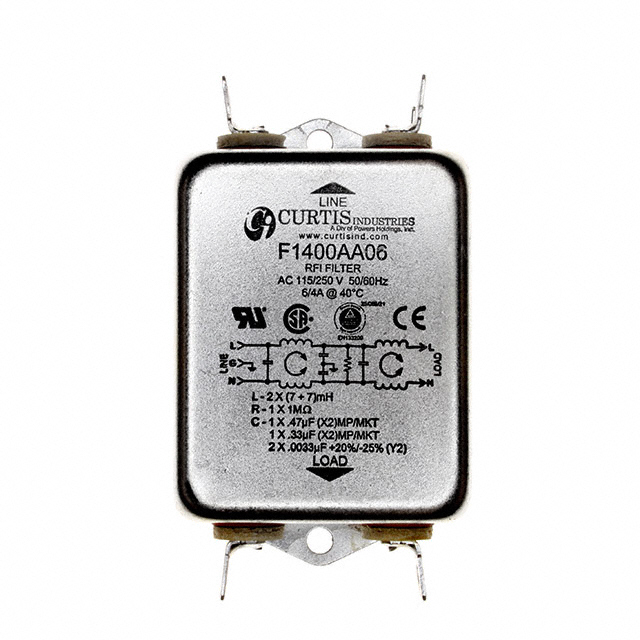

The Curtis Industries F1400AA06 is a single-phase AC RFI line filter designed for electromagnetic interference suppression. It features a rated voltage of 250VAC at 50/60Hz and a current rating of 6A. The unit supports a current overload of 6 times the rated value for 8 seconds. It utilizes a two-stage filtering architecture with quick connect terminals to provide high insertion loss for switching power supply emissions while maintaining low leakage current.

Power Line Filter Modules Feature Summary

• Two-stage filtering design for enhanced noise attenuation
• High peak current capability for robust operation
• Low-leakage current characteristic for safety compliance
• Quick connect terminal interface for simplified integration

Power Line Filter Modules Applications

• Switching power supply emission suppression
• Electromagnetic interference mitigation in electronic equipment
• AC line filtering for single-phase circuits

Power Line Filter Modules Procurement Notes

Verify that the component matches the specific Curtis Industries part number F1400AA06. Confirm the 6A current rating and 250VAC voltage specifications align with the system requirements. Ensure the quick connect terminal type is compatible with the intended wiring harness or PCB layout before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase AC filter with a 6A rating is required. The two-stage design is suitable for applications demanding high insertion loss against switching noise. Verify that the quick connect termination method fits the assembly constraints and that the 250VAC rating meets the circuit voltage standards.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1400 series of AC RFI line filters. These filters are engineered for general-purpose electromagnetic interference suppression in single-phase AC environments. The series offers various current ratings and termination options to accommodate different industrial and commercial electronic applications.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and physical dimensions.
