F2700AA06

Power Line Filter Modules Overview

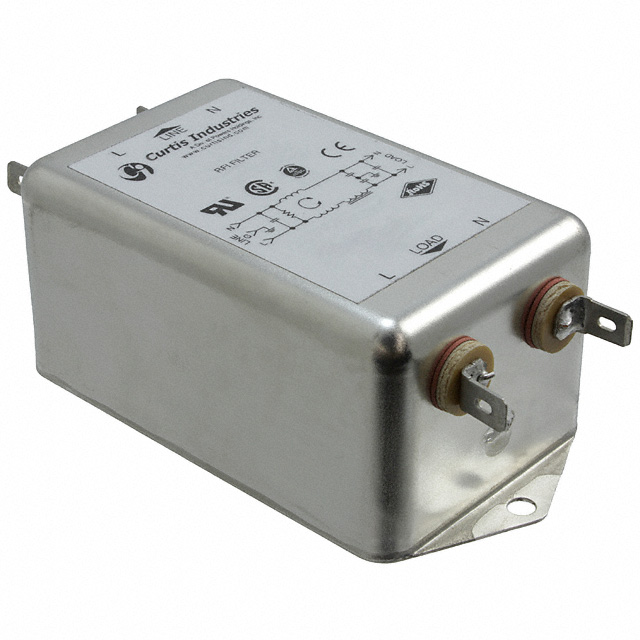

The Curtis Industries F2700AA06 is a single-phase EMC/EMI power line filter module designed for commercial applications. It features a rated current of 6A and a maximum voltage rating of 250VAC, operating at 50/60Hz frequencies. The unit utilizes quick connect terminals with a 0.250-inch (6.3mm) pitch for circuit termination. Mechanically, it supports flange mounting and includes an integrated fuse holder, though the fuse itself is not included. The component meets major safety certifications including CE, CSA, TUV, and UL standards.

Power Line Filter Modules Feature Summary

• Integrated EMI/RFI filtering for commercial grade noise suppression
• Built-in fuse holder for overcurrent protection capability
• Quick connect terminal interface for simplified wiring
• Flange mount design for secure chassis installation

Power Line Filter Modules Applications

• Commercial electronic equipment power input stages
• Industrial control panel power distribution
• Medical device power supply filtering
• Audiovisual equipment noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm exact leakage current values and insertion loss characteristics, as these parameters can vary by manufacturing batch. Ensure the required fuse type and rating are sourced separately, as the module does not include the protective element. Confirm that the quick connect terminal dimensions match the mating connector specifications in your system design to ensure reliable electrical contact.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-stage EMI filter is required for 6A circuits. The flange mount style is suitable for applications where panel space is limited but mechanical stability is critical. Consider the absence of an included fuse when designing the upstream protection scheme. Verify that the 250VAC rating aligns with the local mains voltage requirements of the target deployment region.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F2700 series of power line filters. The series is characterized by its modular design and compliance with international safety standards. It serves as a standard solution for mitigating electromagnetic interference in AC power lines for commercial and industrial hardware.

Power Line Filter Modules Replacement Considerations

TE Connectivity Schaffner FN9246-6-06 is a documented substitute option. Verify that the replacement maintains identical mounting hole patterns and terminal configurations to ensure mechanical compatibility without requiring enclosure modifications.
