F4150R12N3H3FB11BPSA1

Overview

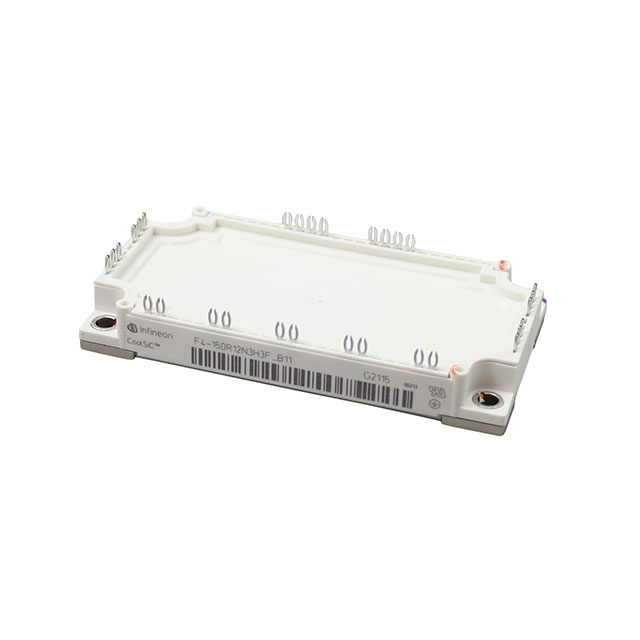

The F4150R12N3H3FB11BPSA1 is a silicon IGBT module manufactured by Infineon Technologies, designed for high-power industrial applications. It features a six-pack configuration with integrated anti-parallel diodes and operates at a collector-emitter voltage of 1200 V. The module supports a continuous collector current of 150 A at 25°C, with a maximum junction temperature rating of 175°C. Packaged in the EconoDUAL 3 form factor, it utilizes screw mounting for secure installation. This component integrates fast-recovery diodes to facilitate efficient switching in three-phase inverter circuits.

Feature Summary

• Six-pack topology integrating IGBTs and anti-parallel diodes for complete three-phase bridge control
• EconoDUAL 3 package design optimized for low stray inductance and thermal performance
• High thermal stability supporting operation up to 175°C junction temperature
• Fast recovery diode integration for efficient commutation and reduced switching losses

Applications

• Industrial motor drives and servo systems
• Medium power inverters for renewable energy systems
• Uninterruptible power supplies (UPS)
• Induction heating equipment

Procurement Notes

Verify the specific suffix H3F against official Infineon documentation to confirm exact revision status and qualification level. Confirm that the EconoDUAL 3 footprint matches the target PCB layout and thermal interface requirements. Ensure gate drive voltage limits are respected within the specified operating range to maintain device reliability.

Selection Notes

Select this module when a robust six-pack solution is required for 1200 V applications demanding 150 A continuous current. Compare thermal resistance values against alternative packages if space constraints exist. Verify compatibility with existing cooling solutions given the module's power dissipation characteristics and mounting style.

Part Context

This part belongs to Infineon's FP150R12 series of IGBT modules, which are engineered for general-purpose industrial power conversion. The EconoDUAL 3 family provides a standardized mechanical interface widely adopted in medium-power inverter designs. It represents a mature silicon technology platform balancing performance and cost for standard industrial frequencies.

Replacement Considerations

Direct pin-to-pin replacements within the same voltage and current class should be verified against Infineon's official replacement lists. Modules from the FP150R12 or FS225R12 families may offer similar electrical ratings but require careful evaluation of thermal resistance and gate charge differences.
