F66WE45SS

Overview

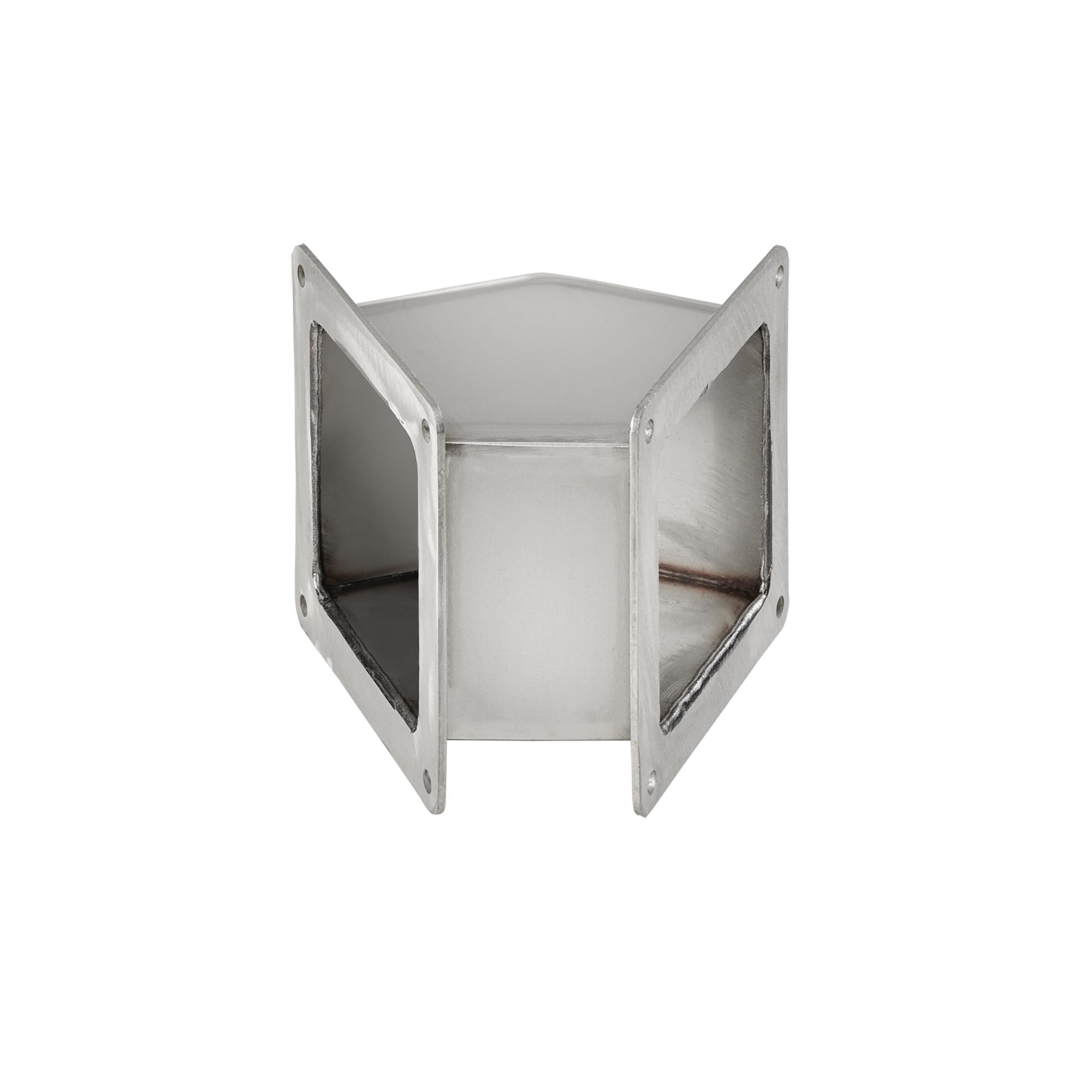

The Hoffman F66WE45SS is a 45-degree wireway elbow fitting designed for feed-through applications in corrosive environments. Constructed from 16-gauge Type 304 stainless steel with a No.2B finish, it provides robust protection against moisture and chemicals. The fitting features an outside opening type with internal dimensions of 6 inches by 6 inches (152.00mm x 152.00mm) and an external height of approximately 4.252 inches (108.00mm). It holds UL 870 and CSA approvals, ensuring compliance with safety standards. The unit meets NEMA 4/4X/12 ratings, making it suitable for demanding industrial settings where environmental sealing is critical.

Feature Summary

• Constructed from 16-gauge Type 304 stainless steel for high corrosion resistance
• Provides 45-degree directional change for wireway systems
• Rated NEMA 4/4X/12 for protection against water, dust, and corrosion
• Features a No.2B finish on the stainless steel surface

Applications

• Connecting wireways at 45-degree turns in wet or corrosive locations
• Industrial electrical installations requiring NEMA 4X rated components
• Feed-through applications in chemical processing or marine environments
• Cable management systems needing durable, non-corrosive fittings

Procurement Notes

Verify that the required fitment matches the 6-inch by 6-inch internal dimension specification. Confirm that the application environment necessitates Type 304 stainless steel rather than aluminum or mild steel alternatives. Ensure the installation location allows for the external profile dimensions provided. Check for any specific local code requirements regarding UL 870 or CSA approval documentation before finalizing procurement.

Selection Notes

Select this model when a 45-degree transition is required within a stainless steel wireway system. It is appropriate for projects specifying NEMA 4X protection levels due to its material composition. Consider this component if the existing infrastructure uses 6x6 inch trunking sections. It serves as a direct replacement for damaged elbows in existing runs without altering the overall wireway gauge or material specifications.

Part Context

This component belongs to the nVent Hoffman feed-through series of fittings. These accessories are designed to integrate seamlessly with matching stainless steel trunking sections. The product line emphasizes durability and environmental sealing for harsh industrial conditions. The F66WE45SS specifically addresses directional changes while maintaining the integrity of the cable protection system.

Replacement Considerations

Compatible substitutes include other 45-degree elbows from the same Hoffman feed-through series with identical 6x6 inch dimensions and Type 304 stainless steel construction. Ensure any replacement maintains the 16-gauge thickness and NEMA 4X rating. Verify that alternative fittings offer equivalent UL 870 and CSA certifications for regulatory compliance.
