F8872RTGV

Overview

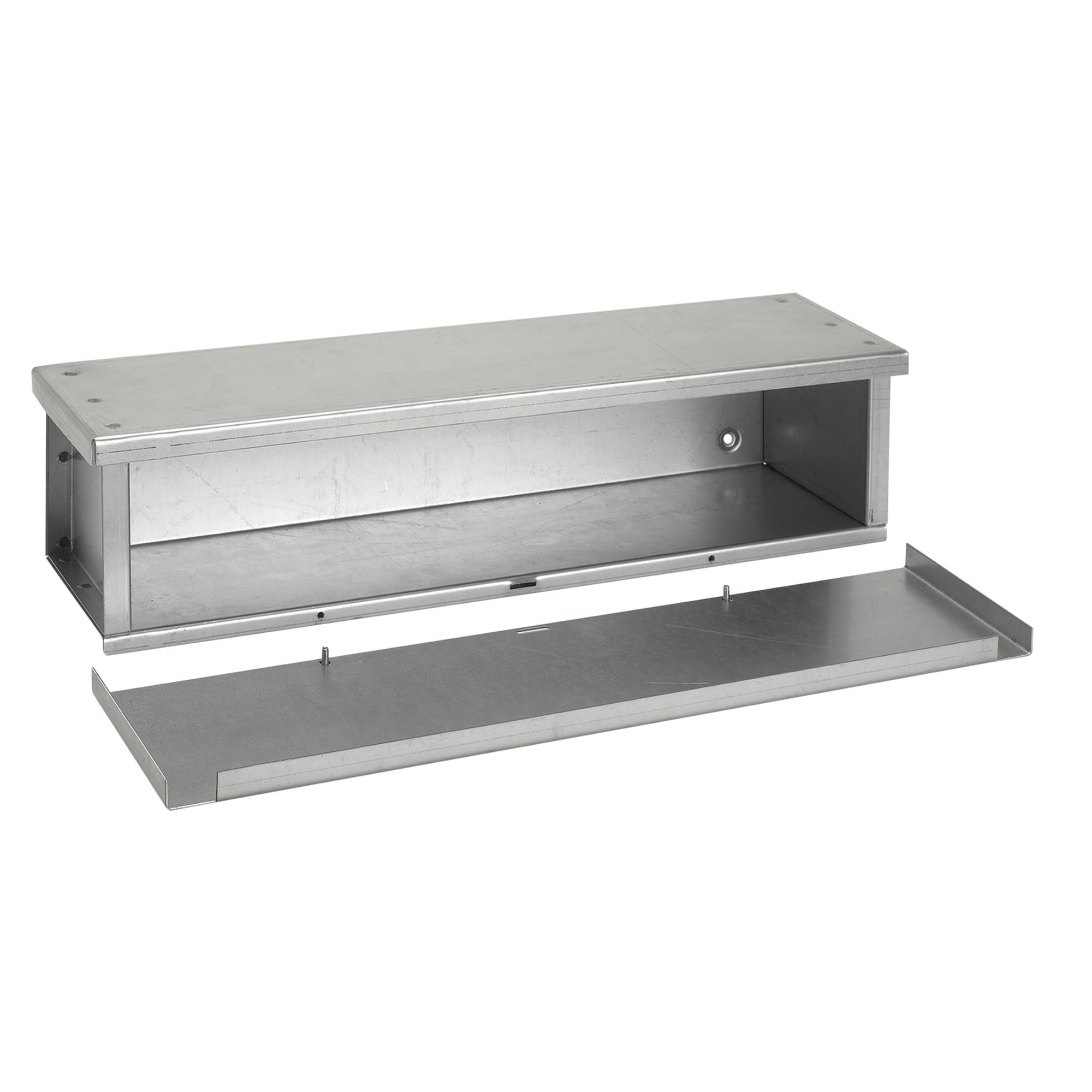

The F8872RTGV is an EconoTrough wiring trough manufactured by Hoffman Enclosures, Inc. It features a NEMA Type 3R rating for outdoor protection against rain and sleet. Constructed from 14-gauge galvanized steel, the unit measures 8 inches in width, 8 inches in depth, and 72 inches in length. The design includes drip-shield top covers on all sides without gasketing or knockouts. It holds UL 870, CUL, and CSA C22.2 approvals.

Feature Summary

• Galvanized steel construction with drip-shield top covers
• NEMA Type 3R rating for weather resistance
• Embossed mounting holes on the back panel

Applications

• Outdoor wire and cable distribution protection
• Protection of junctions and terminations in wet conditions
• Utility seal provision applications

Procurement Notes

Verify that the specific project requirements align with the NEMA Type 3R rating and 14-gauge steel specifications. Confirm that the absence of knockouts and gaskets meets the installation needs. Ensure compatibility with the 72-inch length constraint for the intended routing path.

Selection Notes

Select this model when outdoor exposure requires protection from rain and sleet but dust tightness is not critical. The 14-gauge thickness provides structural integrity for standard cable loads. Consider the lack of knockouts if pre-drilled entry points are required for specific conduit runs.

Part Context

This component belongs to the Hoffman EconoTrough series designed for cable management. It serves as an alternative to fully enclosed cabinets for simple routing tasks. The galvanized finish offers corrosion resistance suitable for harsh environmental conditions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
