FD01BB006

Power Line Filter Modules Overview

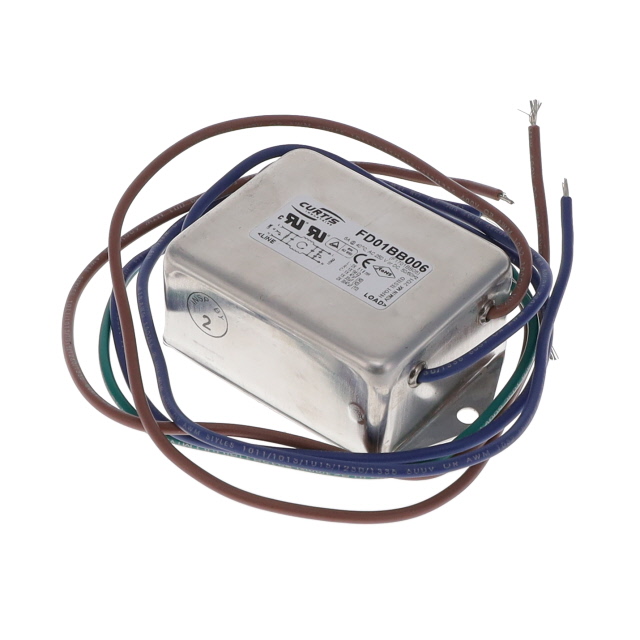

The FD01BB006 is an EMC/EMI line filter module manufactured by Curtis Industries. It is classified as a power line filter assembly designed for electromagnetic interference suppression in electrical circuits. The component features lead wire construction, facilitating direct integration into wiring harnesses or panel-mounted systems without requiring complex mechanical mounting hardware. This configuration supports efficient noise reduction for sensitive electronic equipment operating in environments with significant electromagnetic disturbances.

Power Line Filter Modules Feature Summary

• Integrated EMC/EMI filtering capability for power line applications
• Lead wire assembly design for simplified circuit integration
• RoHS compliant construction ensuring environmental safety standards

Power Line Filter Modules Applications

• Electromagnetic interference suppression in industrial control panels
• Power line filtering for sensitive electronic instrumentation
• Noise reduction in general-purpose electrical assemblies

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and RoHS compliance documentation directly with Curtis Industries or authorized distributors before procurement. Ensure the lead wire specifications match the target application requirements. Confirm that the component meets all relevant regulatory standards for the intended deployment region. Cross-reference part numbers to avoid confusion with similar filter modules in the Curtis portfolio.

Power Line Filter Modules Selection Notes

Select this module when integrated lead wire connectivity is preferred over terminal block interfaces. Consider its form factor for space-constrained installations where traditional chassis-mounted filters are impractical. Evaluate the filtering performance against the specific noise spectrum of the application. Ensure compatibility with the system's voltage and current ratings prior to implementation.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries power line filter module series. Curtis Industries specializes in interconnect solutions, including terminal blocks and filters. The FD01BB006 represents their approach to compact, pre-assembled filtering solutions. These products are designed to complement their broader range of electrical connection hardware, providing complete signal integrity solutions.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Generic EMI filters may not match the specific insertion loss characteristics or physical dimensions. Verify that any substitute maintains the same lead wire gauge and insulation rating to ensure reliable operation.
