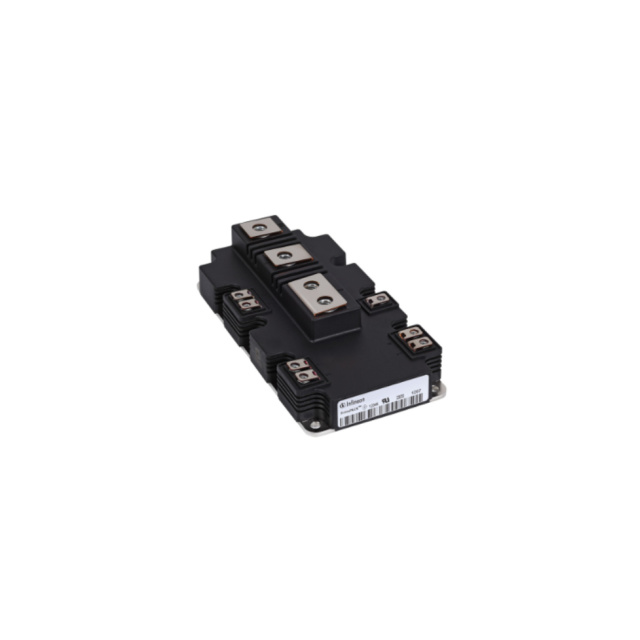

FD900R12IP4DBOSA1

$141.67

Description：IGBT MOD 1200V 900A 5100W
Series：PrimePACK™2

SKU:af39d1ba7873 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 900A 5100W
Series：PrimePACK™2
Mfr：Infineon Technologies
Package：Tray,Tray
IGBT Type：-
Configuration：Single Chopper
Vce(on) (Max) @ Vge, Ic：2.05V @ 15V, 900A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：900 A
Power - Max：5100 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：54 nF @ 25 V

Download product information

FD900R12IP4DBOSA1

Overview

The FD900R12IP4D is a PrimePACK™2 IGBT module featuring Trench/Fieldstop IGBT4 technology and an enlarged Emitter Controlled 4 diode. It provides a collector-emitter voltage of 1200 V and a continuous DC collector current of 900 A at 100°C case temperature. The device supports a repetitive peak collector current of 1800 A and has a total power dissipation of 5.1 kW. Typical saturation voltages are 1.70 V for the IGBT and 1.65 V for the diode at 25°C. Thermal resistance from junction to case is 29.5 K/kW for the IGBT and 37.0 K/kW for the diode. The module includes an NTC thermistor with a nominal resistance of 5.0 kΩ at 25°C.

Feature Summary

High short-circuit capability with self-limiting short-circuit current
Extended operation temperature range up to 150°C
Positive temperature coefficient for collector-emitter saturation voltage
High insulation strength with 4 kV AC isolation

Applications

Chopper applications
Industrial power conversion
Medium voltage drives

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration, as suffixes may indicate variations in packaging or internal components. Confirm RoHS compliance status and material content details through the manufacturer's official product qualification reports before finalizing procurement specifications.

Selection Notes

Select this module for chopper circuits requiring high current density and robust short-circuit performance. Ensure the cooling system design accounts for the specified thermal resistances and that gate drive parameters match the recommended ±15 V levels. Verify that the application voltage does not exceed the 1200 V rating under all transient conditions.

Part Context

This component belongs to the Infineon PrimePACK™2 series utilizing Trench/Fieldstop IGBT4 technology. It is designed for industrial applications demanding high power density and reliability. The module integrates an enlarged diode to improve reverse recovery characteristics compared to standard configurations.
