FF1600R12IP7BOSA1

Overview

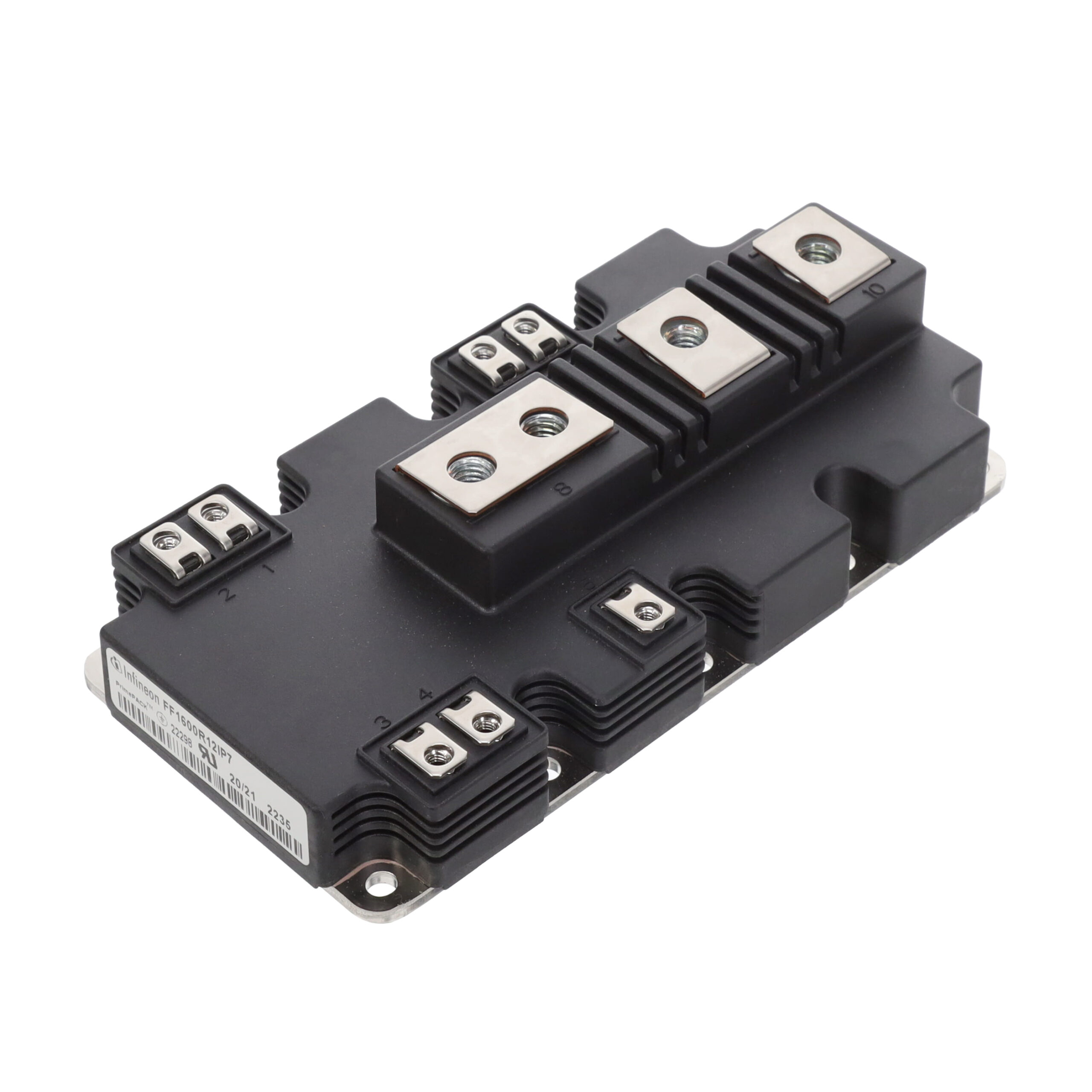

The FF1600R12IP7BOSA1 is a PrimePACK™2 IGBT module integrating TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technology. It features a collector-emitter voltage (VCES) of 1200 V, a nominal implemented collector current (ICN) of 1600 A, and a repetitive peak collector current (ICRM) of 3200 A. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical collector-emitter saturation voltage (VCEsat) of 1.79 V at 25 °C and a forward voltage (VF) of 2.03 V for the diode. The package provides 4 kV AC insulation and supports an extended operating junction temperature up to 175 °C.

Feature Summary

• Integrates seventh-generation TRENCHSTOP™ IGBT7 and EC7 diode technologies for optimized switching performance.
• Features high power density and robust mechanical design with extended creepage and clearance distances.
• Includes an integrated NTC thermistor for precise thermal monitoring within the module.
• Provides high short-circuit withstand capability and excellent power cycling endurance.

Applications

• Industrial motor drives
• Construction, commercial, and agricultural vehicles (CAV)
• Uninterruptible Power Supply (UPS) systems
• Energy storage systems

Procurement Notes

Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm exact packaging and reel specifications. Ensure that the procurement channel sources genuine components directly from authorized distributors or the manufacturer to maintain product integrity and access valid technical support resources.

Selection Notes

Select this component for applications requiring high current handling and low conduction losses in industrial environments. Consider the 175 °C operating temperature range for designs demanding higher thermal margins. Verify gate drive requirements align with the internal gate resistor and charge characteristics to ensure optimal switching performance.

Part Context

This module belongs to the PrimePACK™2 series, designed for high-power industrial applications. It utilizes advanced trench field-stop technology to reduce switching losses compared to previous generations. The form factor allows for efficient mounting on standard heatsinks while providing necessary electrical isolation for safety-critical power conversion systems.

Replacement Considerations

Direct replacements must match the 1200 V rating, 1600 A current capacity, and PrimePACK™2 footprint. Evaluate alternative modules based on comparable VCEsat, switching energy losses, and thermal resistance values to ensure system compatibility without redesigning the cooling infrastructure.

FAQ

What is the maximum short-circuit withstand time for this module?

The module supports a short-circuit pulse duration (tp) of up to 6 µs under specified conditions.

Is this component qualified for automotive applications?

No, the product is not qualified according to the AEC Q100 or AEC Q101 documents of the Automotive Electronics Council.

What is the typical stray inductance of the module?

The module exhibits a typical stray inductance (LsCE) of 18 nH.
