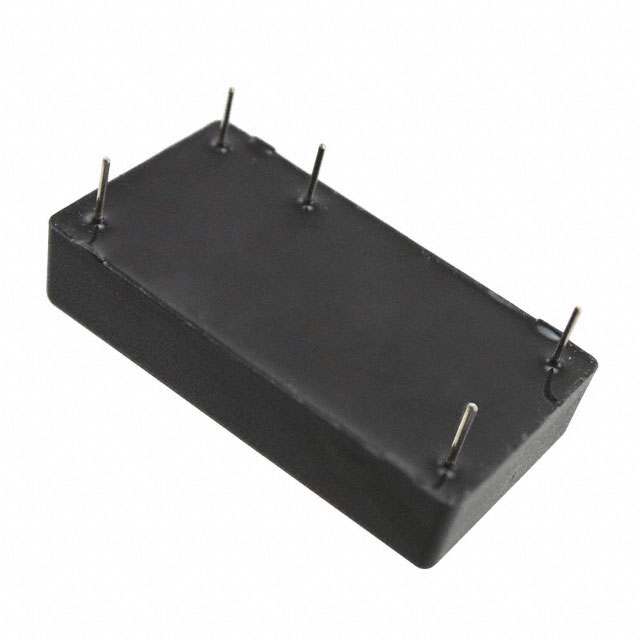

FL75L10 A

Power Line Filter Modules Overview

The Delta Electronics FL75L10 A is a two-stage DC EMC/EMI line filter module designed for surface mount applications. It features a rated voltage of 75V and a current capacity of 10A. The unit operates within a temperature range of -40°C to 110°C. It is engineered to reduce conducted common-mode and differential-mode noise on input or output lines of high-frequency switching power supplies.

Power Line Filter Modules Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Optimized for use with high-frequency board-mounted DC/DC converters
• Designed to reduce conducted common-mode and differential-mode noise

Power Line Filter Modules Applications

• Common-mode and differential-mode filtering of power supply DC input and output lines
• Computer applications
• Communications equipment

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation, as sources indicate variations such as FL75L10-A and FL75L10 A. Confirm that the required package type matches the surface mount specification found in official documentation. Ensure the operating environment stays within the specified -40°C to 110°C range for reliable performance.

Power Line Filter Modules Selection Notes

Select this component when a compact, two-stage EMI filter is required for 75V DC systems. It is suitable for designs needing 10A current handling with surface mount constraints. Consider thermal management capabilities within the -40°C to 110°C operational window during system integration.

Power Line Filter Modules Part Context

This part belongs to the Delphi series from Delta Electronics, which focuses on power systems technology. The series includes variants like the FL75L20 A, offering similar filtering technologies with different current ratings. These modules are manufactured in certified facilities adhering to ISO and quality standards.

Power Line Filter Modules Replacement Considerations

The FL75L20 A is a confirmed substitute within the same Delphi series, offering identical footprint and pin-out but with a higher 20A current rating.
