FLT007A0Z

Power Line Filter Modules Overview

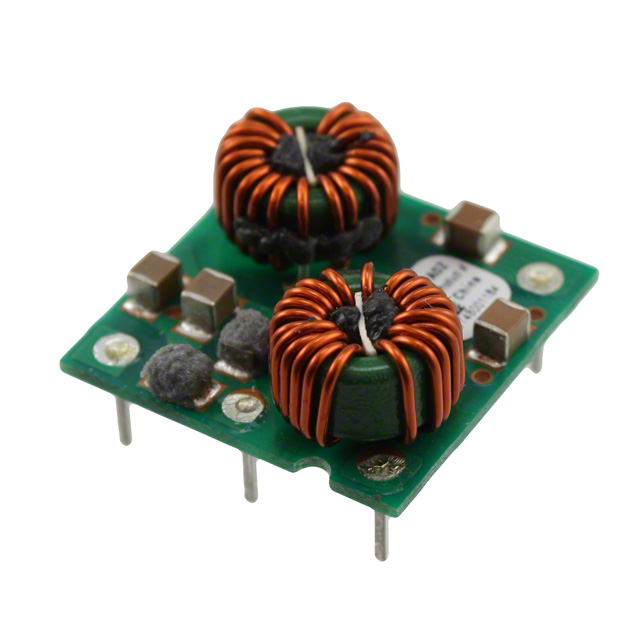

The FLT007A0Z is a single-phase EMC/EMI input filter module manufactured by OmniOn Power. Designed for through-hole mounting, it operates within an input voltage range up to 75Vdc and supports output currents up to 7A. This two-stage filter module integrates filtering capabilities directly into the power line interface to mitigate electromagnetic interference.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture
• Through-hole PC pin installation
• Supports up to 75Vdc input voltage
• Rated for 7A continuous current

Power Line Filter Modules Applications

• Industrial equipment power inputs
• Commercial ITE power supplies
• General DC power line filtering

Power Line Filter Modules Procurement Notes

Verify the specific suffix (Z vs SRZ) against the latest datasheet to confirm package type and compliance status. Confirm RoHS status as documentation may vary by revision. Ensure input voltage and current ratings match system requirements before integration.

Power Line Filter Modules Selection Notes

Select this module when integrated EMI filtering is required at the DC input stage. It eliminates the need for discrete filter components, saving board space. Verify thermal management needs as current ratings approach maximum limits.

Power Line Filter Modules Part Context

This component belongs to OmniOn Power's FLT series of input filter modules. These modules are designed to simplify power supply design by combining filtering functions into a single surface-mount or through-hole package, reducing component count and assembly time.

Power Line Filter Modules Replacement Considerations

Check for the FLT007A0-SRZ variant if surface-mount packaging is preferred. Verify electrical compatibility with any alternative filter modules from other manufacturers, ensuring identical voltage and current ratings.
