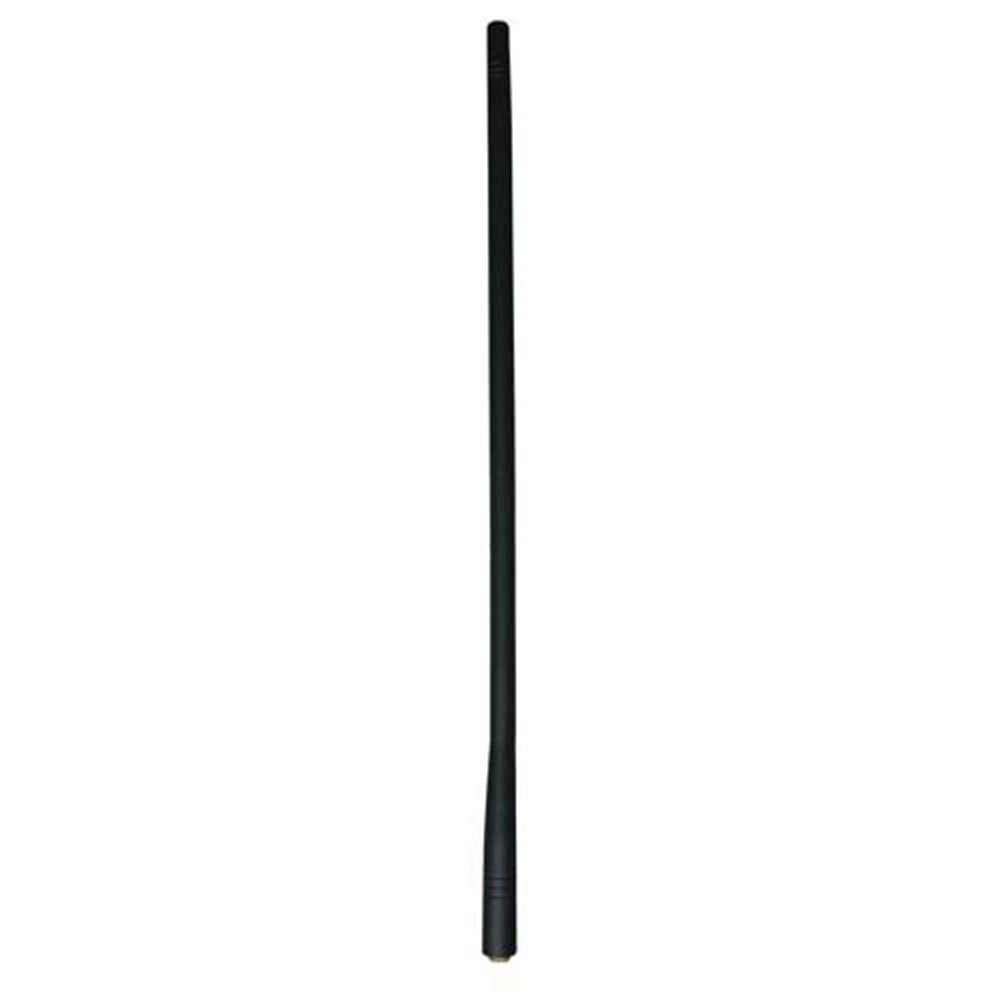

FM51RD1010

FM51RD1010 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA PLUG 900 MHZ-930 MHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FM51RD1010

• Description：ANTENNA SMA PLUG 900 MHZ-930 MHZ
• Series：-
• Mfr：Fairview Microwave
• Package：Bag
• RF Family/Standard：Cellular, General ISM
• Frequency Group：UHF (300MHz ~ 1GHz)
• Frequency (Center/Band)：915MHz
• Frequency Range：900MHz ~ 930MHz
• Antenna Type：Whip, Straight
• Number of Bands：1
• VSWR：2.5
• Return Loss：-
• Gain：5dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：RP-SMA
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Connector Mount
• Height (Max)：16.000" (406.40mm)
• Applications：GSM, ISM
• Power - Max：50 W

Antennas RF datasheet and documents for FM51RD1010
