FMAC-0934-5010

Power Line Filter Modules Overview

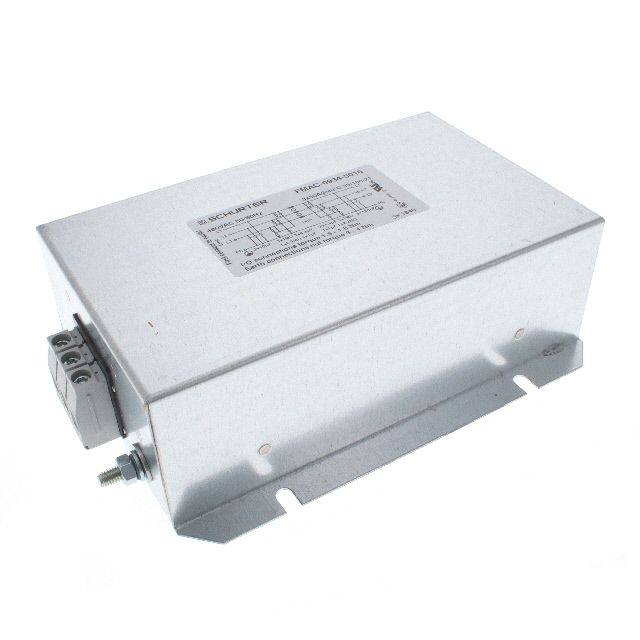

The FMAC-0934-5010 is a three-phase single-stage RFI input filter manufactured by Schurter. It supports rated voltages of 480 VAC and 520 VAC with a continuous current rating of 50 A. Designed for operation at 50 Hz or 60 Hz, the unit utilizes chassis mounting and screw termination methods. The component complies with UL and IEC/EN standards, ensuring suitability for industrial power line filtering applications requiring robust electromagnetic interference suppression.

Power Line Filter Modules Feature Summary

• Provides single-stage attenuation for three-phase power lines
• Supports high current capacity up to 50 amperes
• Features durable chassis mount construction with screw terminals

Power Line Filter Modules Applications

• Industrial machinery power supply protection
• Three-phase motor drive systems
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V vs 520V) required for your application against the datasheet specifications. Confirm that the chassis mounting dimensions and terminal spacing match your enclosure design. Ensure the installation environment falls within the specified operating temperature range to maintain performance and safety compliance.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for your EMI requirements. Compare leakage current values if sensitive equipment is connected downstream. Verify that the physical footprint fits within the available panel space. Consider thermal management needs given the 50A current rating and associated power losses.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filters from Schurter. The series offers various configurations for single and multi-stage filtering across different current ratings. The FMAC-0934-5010 specifically addresses higher current demands in three-phase delta configurations, distinguishing it from lower-rated or single-phase variants in the broader product family.

Power Line Filter Modules Replacement Considerations

Check for exact pinout compatibility before substituting. Verify that alternative models meet the same 50A current and 520V voltage ratings. Ensure mechanical mounting holes align to avoid redesigning the chassis. Confirm that the replacement part holds identical UL and IEC certifications for regulatory compliance.
