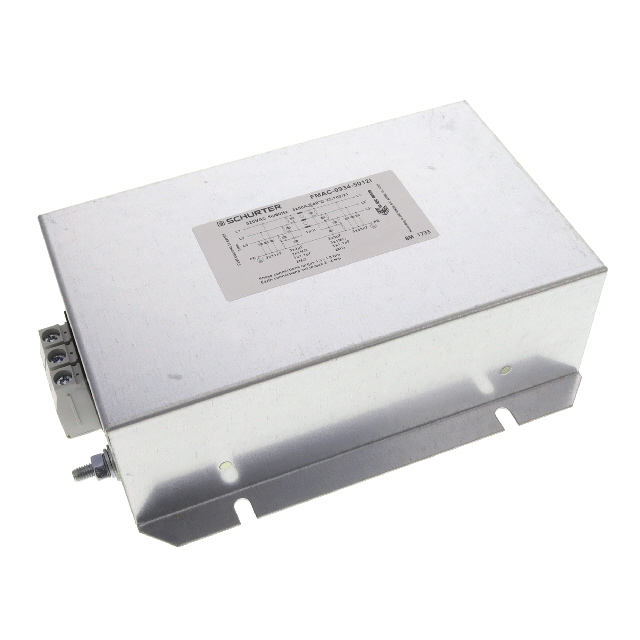

FMAC-0934-5012I

Power Line Filter Modules Overview

The FMAC-0934-5012I is a three-phase EMC/EMI line filter from Schurter, rated for 50 A and voltages up to 520 V AC at 50/60 Hz. It features single-stage attenuation with terminal block connections. The unit operates within a temperature range of -25°C to +100°C and exhibits a leakage current of 9 mA.

Power Line Filter Modules Feature Summary

• Provides single-stage electromagnetic interference suppression for three-phase power lines
• Designed for high-current applications with a 50 A continuous rating
• Utilizes terminal block interface for secure electrical connections

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Three-phase motor drive systems
• Power electronics equipment requiring EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as sources cite both 480V and 520V ratings. Confirm that the terminal block connection type matches the installation hardware. Ensure the operating temperature range meets the environmental conditions of the intended application site before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage filter solution is required for three-phase circuits carrying up to 50 A. Consider the terminal block termination method for compatibility with existing wiring infrastructure. Evaluate the 9 mA leakage current specification against safety grounding requirements in the target system design.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters manufactured by Schurter Inc. The series focuses on providing effective noise suppression for industrial power distribution networks. The specific designation indicates its capacity and phase configuration within the broader product portfolio.

Power Line Filter Modules Replacement Considerations

FMAC-0934-3610 is a related three-phase filter in the same series but with a lower 36 A rating. Verify if the reduced current capacity meets the load requirements before substituting.
