FMAC-0953-6410

Power Line Filter Modules Overview

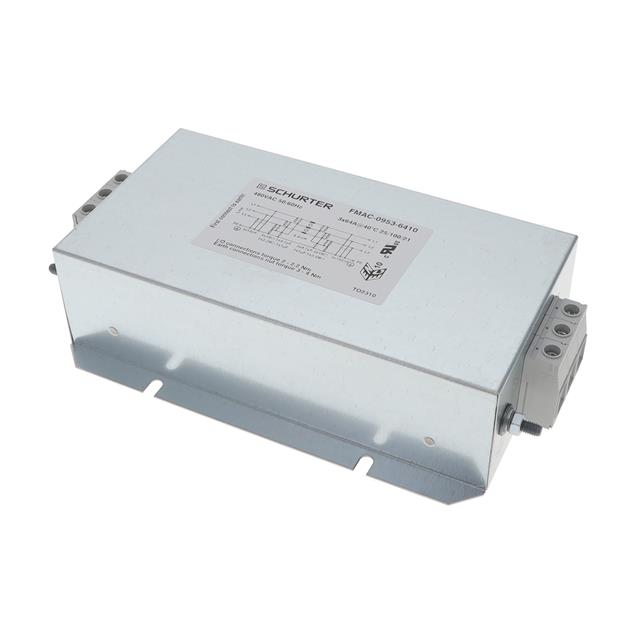

The Schurter FMAC-0953-6410 is a three-phase single-stage power line filter designed for industrial applications. It supports a rated current of 64 A and operates at voltage ratings of 480 V AC and 520 V AC with frequencies of 50 Hz or 60 Hz. The unit features terminal block connections and chassis mounting. Key electrical parameters include a leakage current of 9 mA, ensuring compliance with safety standards.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression through single-stage filtering architecture
• Engineered for high-current industrial power distribution systems
• Utilizes robust terminal block connections for secure electrical interfacing

Power Line Filter Modules Applications

• Industrial machinery power input protection
• Manufacturing plant electrical panels
• Heavy-duty motor drive installations

Power Line Filter Modules Procurement Notes

Verify the specific application requirements against the 64 A current rating and 480/520 V AC voltage specifications before procurement. Confirm that the terminal block connection type aligns with existing panel wiring infrastructure. Ensure the chassis mounting dimensions fit the designated enclosure space to prevent installation conflicts.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels in three-phase systems. Consider the 64 A capacity to ensure adequate headroom for operational loads. Evaluate the chassis mount style against available panel real estate and verify compatibility with the 50/60 Hz operating frequency range.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters manufactured by Schurter Inc. The series focuses on providing EMC solutions for various industrial environments. The FMAC-0953-6410 specifically addresses needs for moderate-to-high current applications requiring reliable noise reduction in delta configuration setups.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers within the FMAC series. Ensure any replacement maintains identical current, voltage, and mounting specifications to guarantee system compatibility.
