FMBC-394C-8014

Power Line Filter Modules Overview

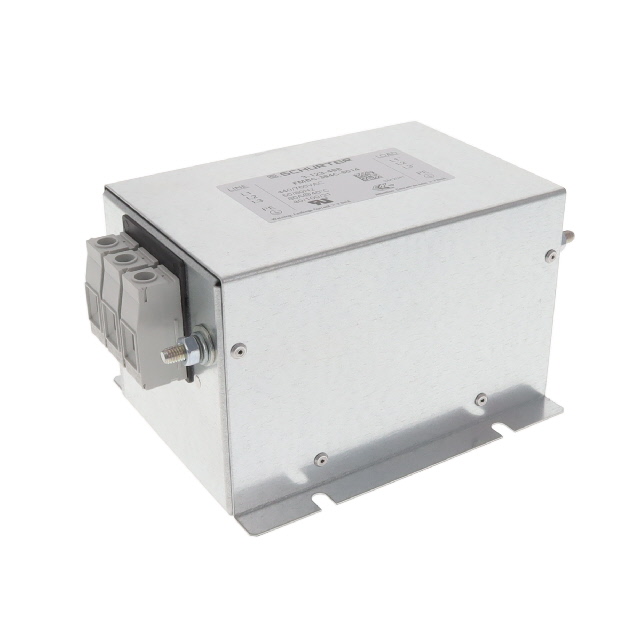

The FMBC-394C-8014 is a three-phase EMC/EMI line filter from the Schurter FMBC series, rated for 80 A and 760 V AC. It features a two-stage configuration designed for industrial applications requiring power quality and electromagnetic interference suppression. The unit supports general-purpose use with chassis mounting and screw termination.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Three-phase delta configuration for industrial power systems
• Chassis mount design with screw termination for secure installation

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Electromagnetic interference suppression in three-phase systems
• General purpose power line filtering

Power Line Filter Modules Procurement Notes

Verify the exact voltage rating (760V AC) and current capacity (80A) against your system requirements before procurement. Confirm that the chassis mount style and screw termination method are compatible with your enclosure design. Ensure the two-stage configuration meets your specific EMI/EMC standards. Check for any specific certification requirements such as UL or CE depending on your region.

Power Line Filter Modules Selection Notes

Select this model if your application requires high current handling up to 80A in a three-phase setup. The two-stage design offers superior attenuation compared to single-stage filters. Consider the physical dimensions and weight for chassis integration. Verify compatibility with your operating frequency range of 50/60 Hz. Ensure the leakage current specifications align with safety regulations for your equipment.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMBC series of power line filter modules. These modules are engineered for robust performance in demanding industrial environments. The FMBC series typically offers modular designs for flexible integration into larger power distribution systems. This specific part number denotes a three-phase variant within that lineup.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other Schurter three-phase filters with similar 80A ratings and two-stage configurations, such as the FMBD-395C-8014. Verify electrical parameters and mechanical fit before substitution. Cross-reference with manufacturer datasheets for equivalent performance characteristics.
