FMBC-394D-J812

Power Line Filter Modules Overview

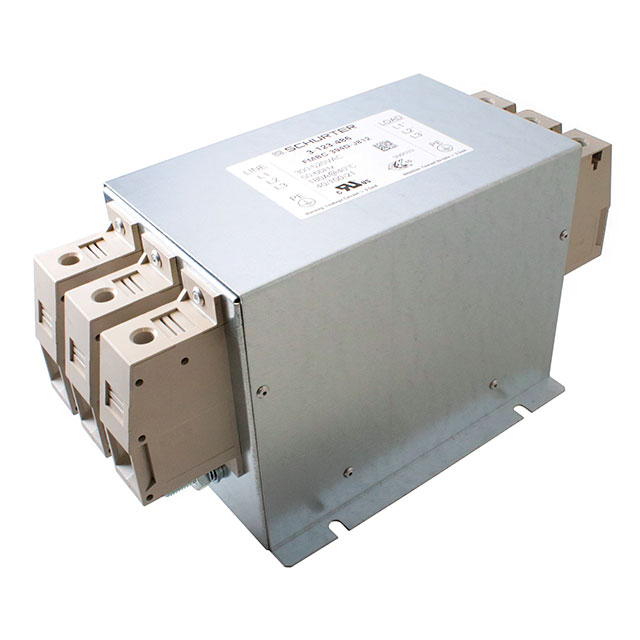

The Schurter FMBC-394D-J812 is a three-phase, two-stage RFI power line filter module designed for industrial applications. It supports a rated voltage of 520V AC and handles a maximum current of 180A. The unit operates within a frequency range of 50Hz to 60Hz and features screw clamp termination for secure connection. Certified under UL and VDE standards, it ensures effective electromagnetic interference suppression while maintaining low leakage current characteristics suitable for sensitive equipment integration.

Power Line Filter Modules Feature Summary

• Three-phase two-stage filtering architecture for enhanced noise attenuation
• High current capacity of 180A for demanding industrial loads
• Screw clamp termination for robust mechanical and electrical connections
• Compliance with UL and VDE safety certifications

Power Line Filter Modules Applications

• Industrial motor drives and variable frequency drives
• Power distribution units in manufacturing facilities
• Heavy machinery requiring strict EMC compliance
• General purpose industrial power conditioning systems

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-394D-J812 against official Schurter documentation to confirm current availability and technical specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for any recent regulatory updates or certification renewals that may affect deployment in regulated industries.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required in industrial environments. The 180A rating makes it suitable for heavy-duty applications where standard filters may be insufficient. Consider the physical dimensions and mounting requirements to ensure proper integration into existing control panels or enclosures.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series by Schurter, which specializes in high-performance RFI filters for industrial power applications. The series is known for combining compact design with high current handling capabilities, making it a preferred choice for modern industrial automation and power electronics systems requiring reliable electromagnetic compatibility.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Cross-referencing with distributor databases may provide alternative models with similar electrical ratings, but only manufacturer-approved replacements should be considered for critical installations.
