FMBC-395B-5012

Power Line Filter Modules Overview

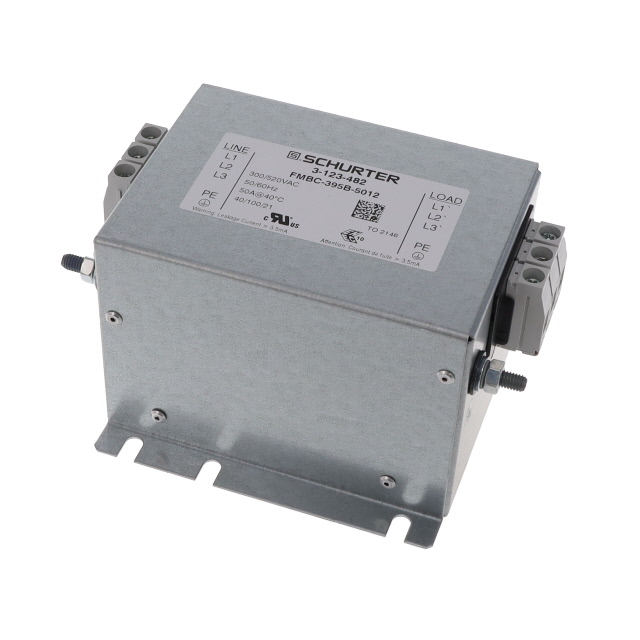

The FMBC-395B-5012 is a three-phase, two-stage RFI filter from the Schurter FMBC EP series. It supports a rated AC voltage of 520V and a continuous current of 50A. Designed for 50Hz and 60Hz operation, it utilizes screw terminal block termination for secure connection. The unit operates within a temperature range of -40°C to +100°C and complies with RoHS3 standards.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High current capacity suitable for industrial power distribution
• Robust chassis mount design with screw terminal connections

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• General purpose three-phase power line protection
• Motor controller input filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Schurter documentation to confirm exact electrical ratings and certification status. Ensure the procurement channel provides valid manufacturer traceability. Confirm that the delivered component matches the specified FMBC EP series characteristics before integration into the final assembly.

Power Line Filter Modules Selection Notes

Select this model when a three-phase solution with 50A capacity and 520V rating is required. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the installation environment accommodates the operating temperature range and that the physical dimensions fit the designated chassis space.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMBC EP series, which focuses on high-performance electromagnetic compatibility solutions. The series is engineered for demanding industrial environments, providing reliable interference suppression for sensitive electronic equipment connected to three-phase power networks.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Generic cross-references may not match the specific two-stage topology or current handling capabilities of the original FMBC-395B-5012 unit.
