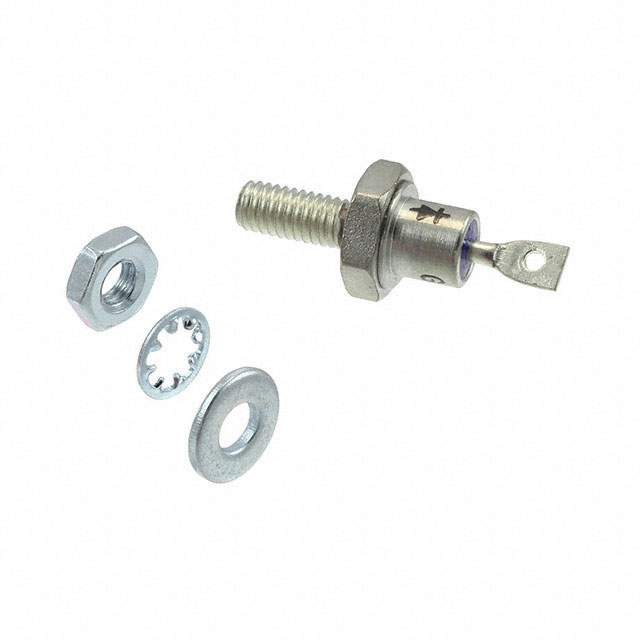

FR12JR02

$6.54

Description：DIODE STANDARD REV 600V 12A DO4
Series：-
Mfr：GeneSiC Semiconductor
Package：Bulk

SKU:6f2187dddf23 Category: Single Diodes Brand: GeneSiC Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FR12JR02 is listed in the Single Diodes range at ChipApex. The manufacturer field lists GeneSiC Semiconductor. Its product description is DIODE STANDARD REV 600V 12A DO4. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for FR12JR02

Description：DIODE STANDARD REV 600V 12A DO4
Series：-
Mfr：GeneSiC Semiconductor
Package：Bulk
Technology：Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：12A
Voltage - Forward (Vf) (Max) @ If：800 mV @ 12 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：250 ns
Current - Reverse Leakage @ Vr：25 µA @ 100 V
Capacitance @ Vr, F：-
Mounting Type：Chassis, Stud Mount
Package / Case：DO-203AA, DO-4, Stud
Supplier Device Package：DO-4
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for FR12JR02

FR12JR02

Single Diodes Overview

The GeneSiC Semiconductor FR12JR02 is a silicon fast recovery diode housed in a DO-4 stud package. It features a maximum repetitive peak reverse voltage of 600 V and a continuous forward current rating of 12 A. The device exhibits a maximum forward voltage of 0.8 V at 12 A and a maximum reverse current of 25 μA. Its thermal resistance from junction to case is 2.5 °C/W, supporting an operating temperature range of -55 °C to 150 °C. The component provides high surge capability with a non-repetitive forward current rating of 180 A.

Single Diodes Feature Summary

High surge current capability for robust transient handling
Not sensitive to electrostatic discharge events
Standard polarity configuration with the stud terminal serving as the cathode

Single Diodes Applications

High-frequency rectification circuits
Switch-mode power supply output stages
Induction heating applications
DC-DC converter topologies

Single Diodes Procurement Notes

Verify that the specific part number matches the required voltage class and polarity configuration before procurement. Confirm the mounting interface requirements align with the DO-4 stud package dimensions. Ensure thermal management solutions accommodate the specified junction-to-case thermal resistance for reliable operation within the stated temperature limits.

Single Diodes Selection Notes

Select this component when a 600 V blocking voltage and 12 A continuous current are required in a stud-mountable form factor. Consider the 200 ns maximum reverse recovery time for switching speed requirements. Evaluate the thermal performance based on the 2.5 °C/W junction-to-case resistance and the 180 A surge current rating for circuit protection needs.

Single Diodes Part Context

This component belongs to the FR12B02 through FR12JR02 series of silicon fast recovery diodes manufactured by GeneSiC Semiconductor. The series offers various voltage ratings ranging from 100 V to 600 V while maintaining consistent current and package specifications across the lineup.
