FS05MR12A6MA1BBPSA1

$834.67

Description：MOSFET 1200V 200A AG-HYBRIDD
Series：HybridPACK™

SKU:bdded7a96966 Category: FET, MOSFET Arrays Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FS05MR12A6MA1BBPSA1 is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET 1200V 200A AG-HYBRIDD. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for FS05MR12A6MA1BBPSA1

Description：MOSFET 1200V 200A AG-HYBRIDD
Series：HybridPACK™
Mfr：Infineon Technologies
Package：Tray
Technology：Silicon Carbide (SiC)
Configuration：-
FET Feature：-
Drain to Source Voltage (Vdss)：1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C：200A
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：-
Operating Temperature：-
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-HYBRIDD-2
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for FS05MR12A6MA1BBPSA1

FS05MR12A6MA1BBPSA1

FET, MOSFET Arrays Overview

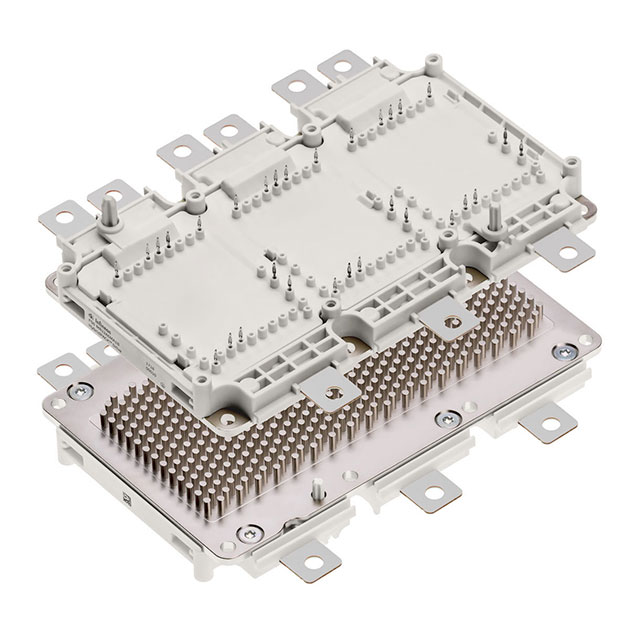

The FS05MR12A6MA1BBPSA1 is a HybridPACK Drive module utilizing CoolSiC Automotive MOSFET technology. It features a 1200 V drain-source voltage and a nominal DC drain current of 200 A at 25°C junction temperature. The device incorporates a direct-cooled PinFin base plate for thermal management and utilizes press-fit contact technology for PCB assembly. Electrical characteristics include a maximum on-resistance of 9.1 mΩ at 150°C, low stray inductance of 8.5 nH, and an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.

FET, MOSFET Arrays Feature Summary

Automotive-grade silicon carbide MOSFETs qualified according to AQG 324 standards
Direct-cooled PinFin base plate design enabling high power density
Low inductive structure with integrated short-circuit capability
Integrated NTC temperature sensor for precise thermal monitoring

FET, MOSFET Arrays Applications

(Hybrid) electric vehicles (H)EV traction inverters
Commercial agriculture vehicle motor drives
General automotive motor drive systems

FET, MOSFET Arrays Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact configuration details. Confirm that the component meets the required AQG 324 automotive qualification standards for your specific application environment. Ensure compatibility with the designated cooler design and flow direction as specified in the relevant application notes.

FET, MOSFET Arrays Selection Notes

Select this module for applications requiring robust automotive reliability and high efficiency under demanding thermal conditions. The 1200 V rating supports standard EV bus architectures. Evaluate the thermal performance based on the specified cooling fluid parameters and pressure drop limits to ensure optimal junction temperature management during operation.

FET, MOSFET Arrays Part Context

This component belongs to Infineon's HybridPACK Drive family, which provides scalable solutions for electric vehicle traction inverters. The series integrates market-leading SiC technology within a compact footprint designed for high-performance motor control applications. It represents a specialized segment of power modules optimized for the stringent requirements of modern automotive electrification.
